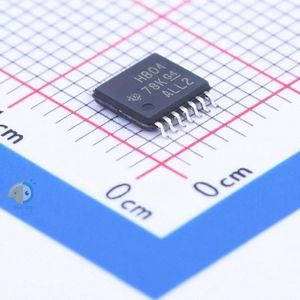

SN74AHCT04PWR
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Texas Instruments |
| Package | 14-TSSOP (0.173", 4.40mm Width) |
| Datasheet | SN54/74AHCT04 |
| Description | Inverter IC 6 Channel 14-TSSOP |
فروشنده های SN74AHCT04PWR
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات SN74AHCT04PWR
- RoHS true
- Series 74AHCT
- Category Logic ICs/Inverters
- Datasheet Texas Instruments SN74AHCT04PWR
- Input Type -
- Sink Current 8mA
- Source Current 8mA
- Number of channels 6
- Supply Current (Max) 2uA
- Low level range (VIL) 0.8V
- Max Propagation Delay 7.7ns@5V,50pF
- Operating Temperature -40°C~+125°C
- High level range (VIH) 2V
- Supply Voltage(Single) 4.5V~5.5V
- Package TSSOP-14
- Manufacturer Texas Instruments
- Part Status Active
- Max Propagation Delay @ V, Max CL 7.7ns @ 5V, 50pF
- Package / Case 14-TSSOP (0.173", 4.40mm Width)
- Logic Level - Low 0.8V
- Current - Output High, Low 8mA, 8mA
- Base Part Number SN74AHCT
- Current - Quiescent (Max) 2µA
- Mounting Type Surface Mount
- Number of Inputs 6
- Voltage - Supply 4.5V ~ 5.5V
- Number of Circuits 6
- Packaging Cut Tape (CT)
- Logic Type Inverter
- Supplier Device Package 14-TSSOP
- Features -
- Logic Level - High 2V
- detail Inverter IC 6 Channel 14-TSSOP
