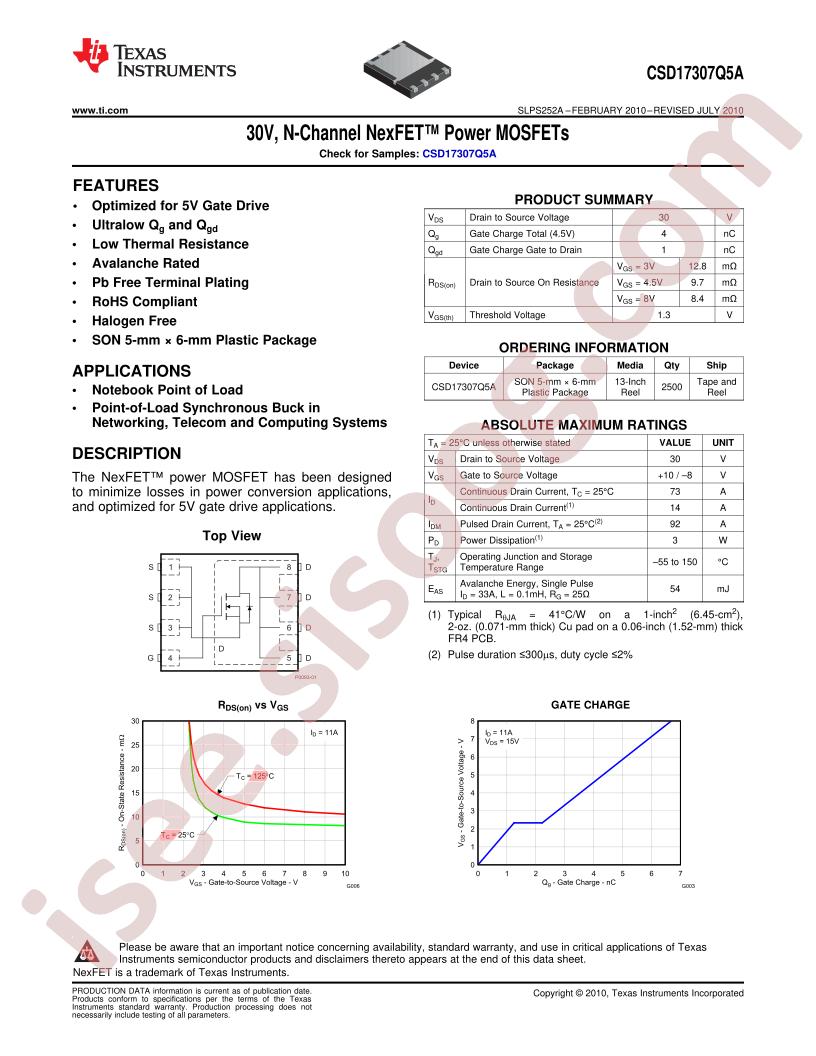

دیتاشیت CSD17307Q5A
مشخصات دیتاشیت
| نام دیتاشیت |
CSD17307Q5A
|
| حجم فایل |
390.823
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
10
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Texas Instruments CSD17307Q5A
-
Power Dissipation (Pd):
3W
-
Drain Source Voltage (Vdss):
30V
-
Continuous Drain Current (Id):
14A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.8V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
10.5mΩ@8V,11A
-
Package:
DFN-8(5x6)
-
Manufacturer:
Texas Instruments
-
Power Dissipation (Max):
3W (Ta)
-
Drain to Source Voltage (Vdss):
30V
-
Rds On (Max) @ Id, Vgs:
10.5mOhm @ 11A, 8V
-
Vgs (Max):
+10V, -8V
-
FET Type:
N-Channel
-
Drive Voltage (Max Rds On, Min Rds On):
3V, 8V
-
Technology:
MOSFET (Metal Oxide)
-
Current - Continuous Drain (Id) @ 25°C:
14A (Ta), 73A (Tc)
-
FET Feature:
-
-
Input Capacitance (Ciss) (Max) @ Vds:
700pF @ 15V
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Packaging:
Cut Tape (CT)
-
Package / Case:
8-PowerTDFN
-
Part Status:
Active
-
Series:
NexFET™
-
Vgs(th) (Max) @ Id:
1.8V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
5.2nC @ 4.5V
-
Supplier Device Package:
8-VSONP (5x6)
-
Mounting Type:
Surface Mount
-
Base Part Number:
CSD173
-
detail:
N-Channel 30V 14A (Ta), 73A (Tc) 3W (Ta) Surface Mount 8-VSONP (5x6)
