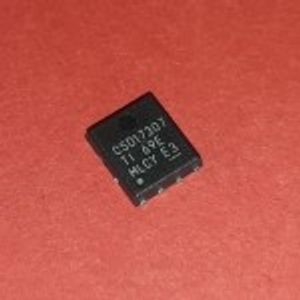

CSD17307Q5A
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Texas Instruments |
| Package | 8-PowerTDFN |
| Datasheet | CSD17307Q5A |
| Description | N-Channel 30V 14A (Ta), 73A (Tc) 3W (Ta) Surface Mount 8-VSONP (5x6) |
فروشنده های CSD17307Q5A
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات CSD17307Q5A
- RoHS true
- Type N Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet Texas Instruments CSD17307Q5A
- Power Dissipation (Pd) 3W
- Drain Source Voltage (Vdss) 30V
- Continuous Drain Current (Id) 14A
- Gate Threshold Voltage (Vgs(th)@Id) 1.8V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 10.5mΩ@8V,11A
- Package DFN-8(5x6)
- Manufacturer Texas Instruments
- Power Dissipation (Max) 3W (Ta)
- Drain to Source Voltage (Vdss) 30V
- Rds On (Max) @ Id, Vgs 10.5mOhm @ 11A, 8V
- Vgs (Max) +10V, -8V
- FET Type N-Channel
- Drive Voltage (Max Rds On, Min Rds On) 3V, 8V
- Technology MOSFET (Metal Oxide)
- Current - Continuous Drain (Id) @ 25°C 14A (Ta), 73A (Tc)
- FET Feature -
- Input Capacitance (Ciss) (Max) @ Vds 700pF @ 15V
- Operating Temperature -55°C ~ 150°C (TJ)
- Packaging Cut Tape (CT)
- Package / Case 8-PowerTDFN
- Part Status Active
- Series NexFET™
- Vgs(th) (Max) @ Id 1.8V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 5.2nC @ 4.5V
- Supplier Device Package 8-VSONP (5x6)
- Mounting Type Surface Mount
- Base Part Number CSD173
- detail N-Channel 30V 14A (Ta), 73A (Tc) 3W (Ta) Surface Mount 8-VSONP (5x6)
