دیتاشیت TPS71433DCKT
مشخصات دیتاشیت
| نام دیتاشیت | TPS714xx Datasheet |
|---|---|
| حجم فایل | 1904.815 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 23 |

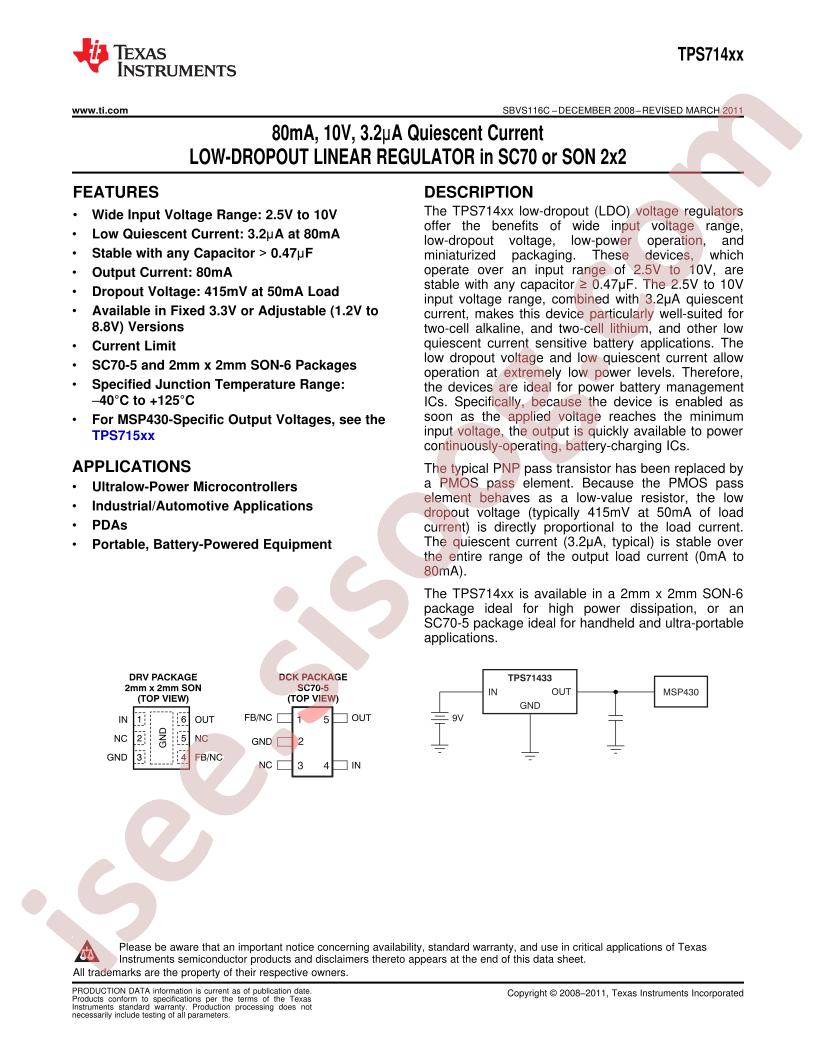

دانلود دیتاشیت TPS714xx Datasheet |
TPS714xx Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments TPS71433DCKT
- Output Current: 80mA
- Output Voltage: 3.3V
- Dropout Voltage: 1.3V@(80mA)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 10V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 4.2uA
- Package: SC-70-5
- Manufacturer: Texas Instruments
- Current - Supply (Max): 7.4µA
- Output Configuration: Positive
- Package / Case: 5-TSSOP, SC-70-5, SOT-353
- Packaging: Cut Tape (CT)
- Protection Features: Over Current
- Number of Regulators: 1
- Part Status: Active
- Current - Quiescent (Iq): 4.2µA
- Supplier Device Package: SC-70-5
- Voltage - Input (Max): 10V
- Voltage - Output (Min/Fixed): 3.3V
- Mounting Type: Surface Mount
- PSRR: 59dB ~ 54dB (120Hz)
- Base Part Number: TPS714
- Series: -
- Output Type: Fixed
- Control Features: Current Limit
- Voltage - Output (Max): -
- Voltage Dropout (Max): 1.3V @ 80mA
- Current - Output: 80mA
- detail: Linear Voltage Regulator IC 1 Output 80mA SC-70-5
