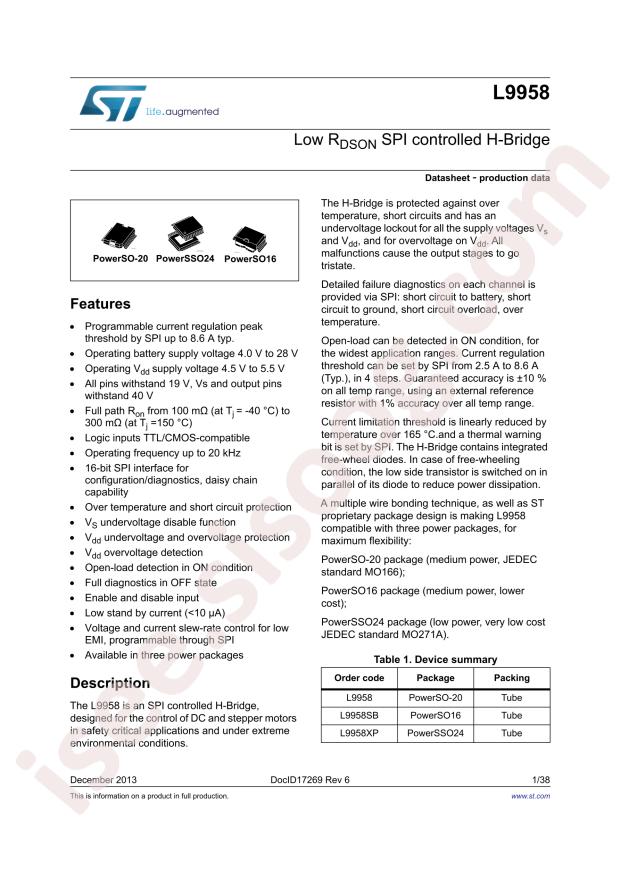

دیتاشیت L9958SB

L9958

مشخصات دیتاشیت

نام دیتاشیت L9958
حجم فایل 780.323 کیلوبایت
نوع فایل pdf
تعداد صفحات 38

دانلود دیتاشیت L9958

L9958 Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Motor Type - Stepper: Bipolar
  • Motor Type - AC, DC: Brushed DC
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Half Bridge (2)
  • Interface: SPI
  • Technology: CMOS
  • Step Resolution: -
  • Applications: General Purpose
  • Current - Output: 8.6A
  • Voltage - Supply: 4.5V ~ 5.5V
  • Voltage - Load: 4V ~ 28V
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: 16-PowerBSOP (0.370", 9.40mm Width)
  • Supplier Device Package: PowerSO-16™
  • Base Part Number: L9958
  • detail: Bipolar Motor Driver CMOS SPI PowerSO-16™
