دیتاشیت SN74HC27N

SN54HC27, SN74HC27

مشخصات دیتاشیت

نام دیتاشیت SN54HC27, SN74HC27
حجم فایل 1192.786 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

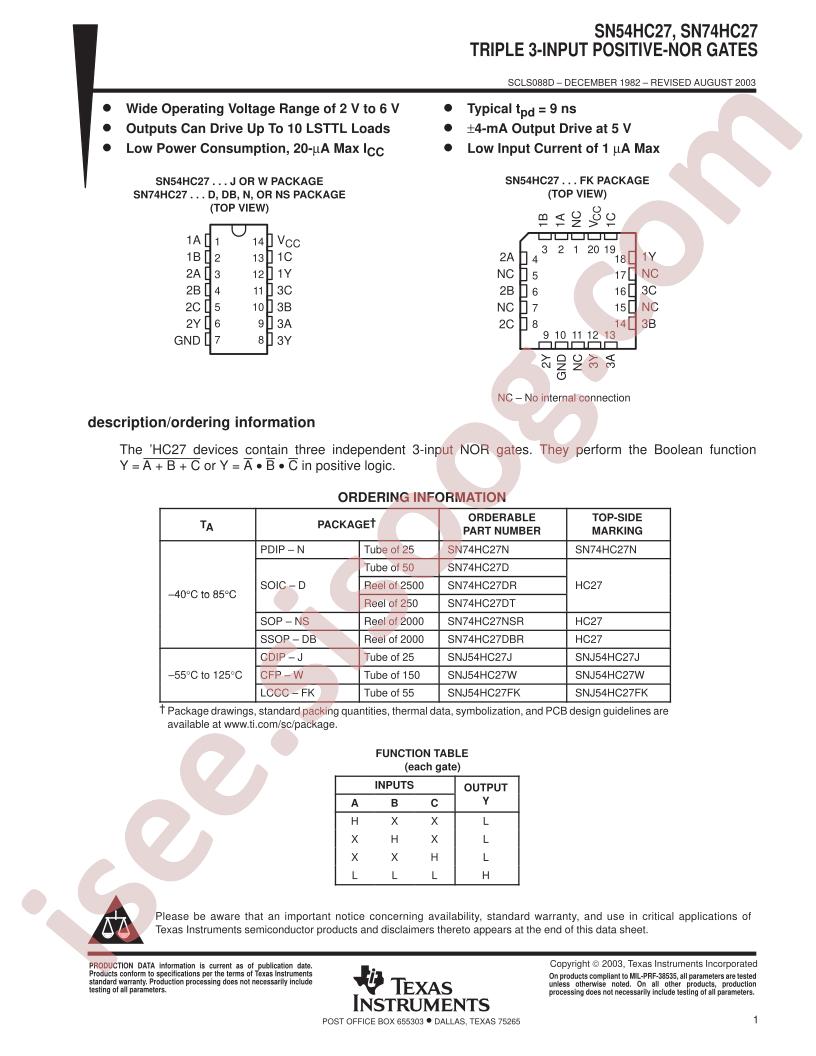

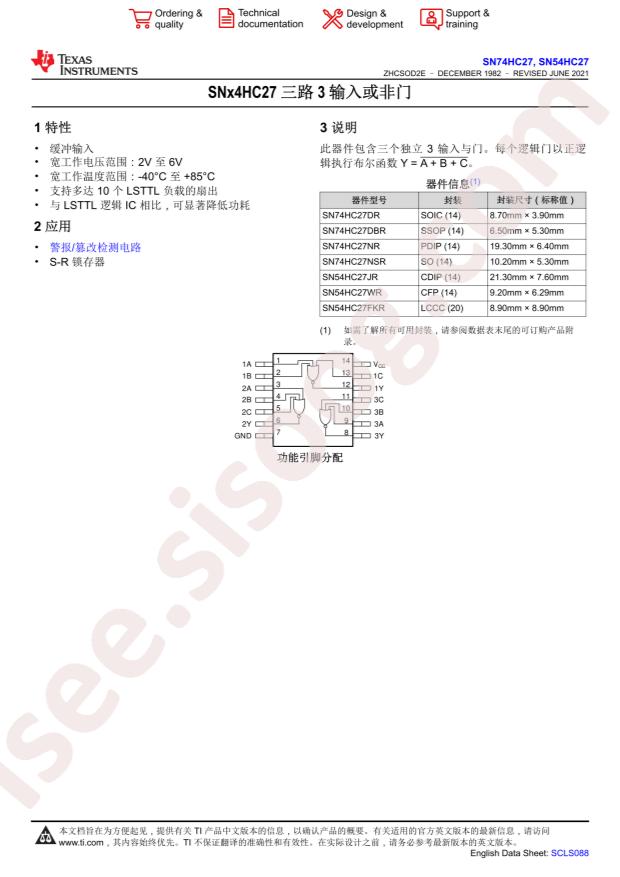

دانلود دیتاشیت SN54HC27, SN74HC27

SN54HC27, SN74HC27 Datasheet

مشخصات

  • Logic Level - High: 1.5V ~ 4.2V
  • Base Part Number: SN74HC2
  • Supplier Device Package: 14-PDIP
  • Logic Level - Low: 0.5V ~ 1.8V
  • Package / Case: 14-DIP (0.300", 7.62mm)
  • Current - Quiescent (Max): 2µA
  • Current - Output High, Low: 5.2mA, 5.2mA
  • Features: -
  • Mounting Type: Through Hole
  • Packaging: Tube
  • Voltage - Supply: 2V ~ 6V
  • Number of Circuits: 3
  • Series: 74HC
  • Max Propagation Delay @ V, Max CL: 15ns @ 6V, 50pF
  • Number of Inputs: 3
  • Operating Temperature: -40°C ~ 85°C
  • Part Status: Active
  • Logic Type: NOR Gate
  • Manufacturer: Texas Instruments
  • detail: NOR Gate IC 3 Channel 14-PDIP
