دیتاشیت SN74S08N
مشخصات دیتاشیت
| نام دیتاشیت | SN54,74(LS,S)08 |
|---|---|
| حجم فایل | 1341.763 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 23 |
دانلود دیتاشیت SN54,74(LS,S)08 |

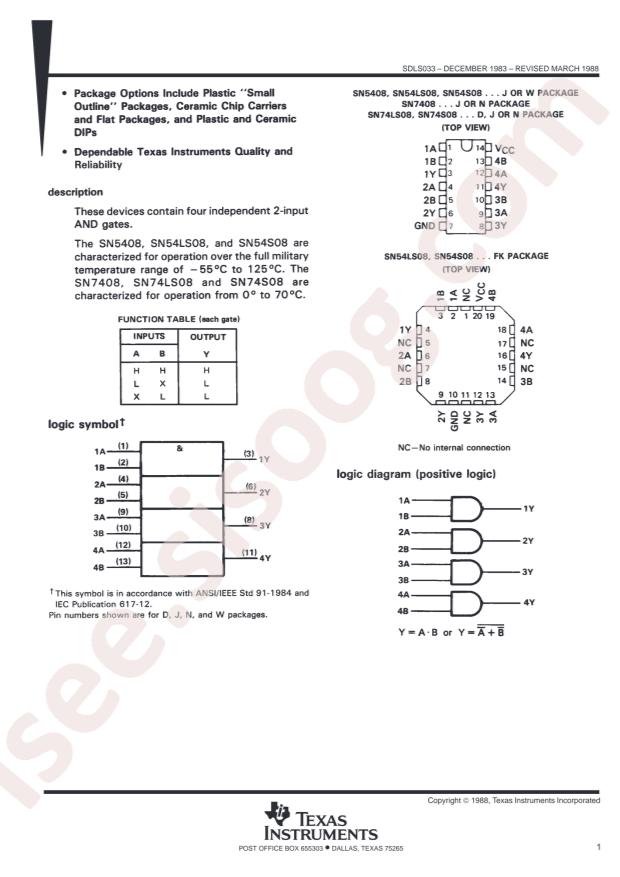

SN54,74(LS,S)08 Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 74S
- Category: Logic ICs/Gates
- Datasheet: Texas Instruments SN74S08N
- Sink Current: 20mA
- Source Current: 1mA
- Supply Voltage: 4.75V~5.25V
- Logic Gate Type: And
- Number of Channels: 4
- Low Level Range (VIL): 0.8V
- Operating Temperature: 0°C~+70°C
- High Level Range (VIH): 2V
- Propagation Delay Time: 7.5ns@5V,50pF
- Package: PDIP-14
- Manufacturer: Texas Instruments
- Logic Level - High: 2V
- Base Part Number: SN74S0
- Supplier Device Package: 14-PDIP
- Logic Level - Low: 0.8V
- Package / Case: 14-DIP (0.300", 7.62mm)
- Current - Output High, Low: 1mA, 20mA
- Features: -
- Mounting Type: Through Hole
- Packaging: Tube
- Voltage - Supply: 4.75V ~ 5.25V
- Number of Circuits: 4
- Max Propagation Delay @ V, Max CL: 7.5ns @ 5V, 50pF
- Number of Inputs: 2
- Part Status: Active
- Logic Type: AND Gate
- detail: AND Gate IC 4 Channel 14-PDIP
