دیتاشیت SN74ALS10ANSR
مشخصات دیتاشیت
| نام دیتاشیت | SN54/74(ALS,AS)10(A) |
|---|---|
| حجم فایل | 971.012 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |
دانلود دیتاشیت SN54/74(ALS,AS)10(A) |

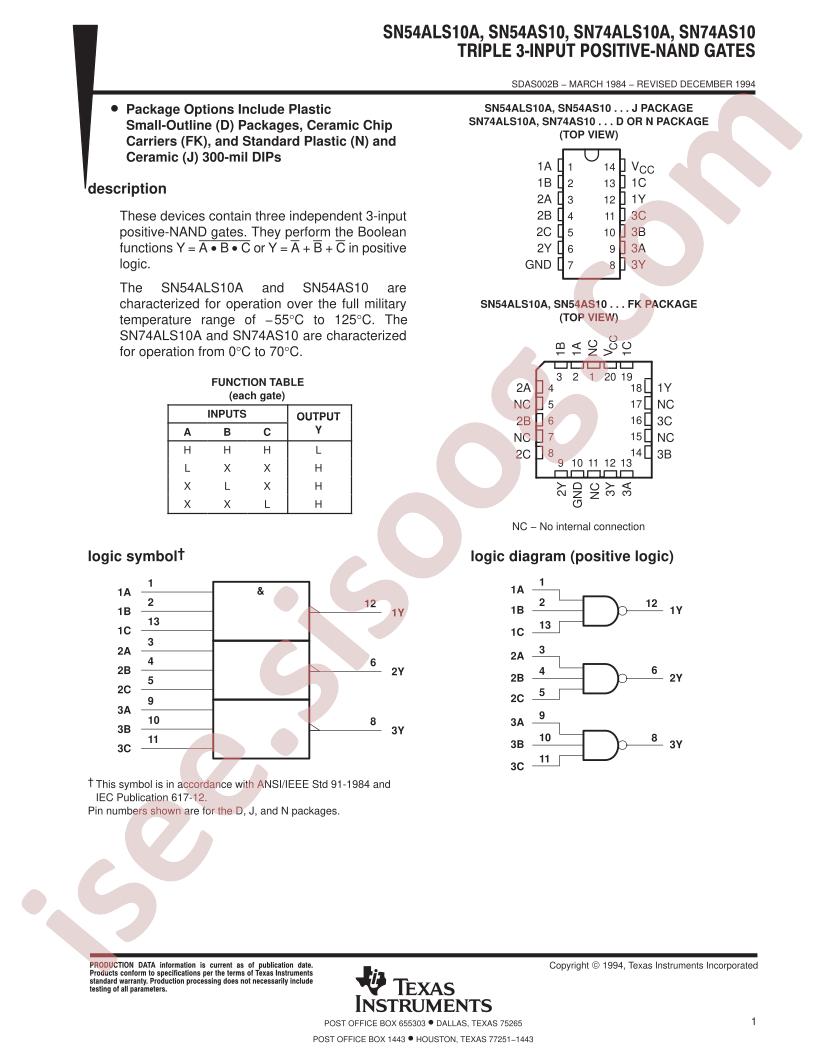

SN54/74(ALS,AS)10(A) Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Logic ICs/Gates
- Datasheet: Texas Instruments SN74ALS10ANSR
- Package: SOP-14-208mil
- Manufacturer: Texas Instruments
- Series: 74ALS
- Package / Case: 14-SOIC (0.209", 5.30mm Width)
- Logic Level - High: 2V
- Number of Circuits: 3
- Number of Inputs: 3
- Features: -
- Current - Output High, Low: 400µA, 8mA
- Mounting Type: Surface Mount
- Supplier Device Package: 14-SOP
- Logic Type: NAND Gate
- Operating Temperature: 0°C ~ 70°C
- Max Propagation Delay @ V, Max CL: 11ns @ 5V, 50pF
- Voltage - Supply: 4.5V ~ 5.5V
- Base Part Number: SN74ALS1
- Part Status: Active
- Logic Level - Low: 0.8V
- detail: NAND Gate IC 3 Channel 14-SOP
