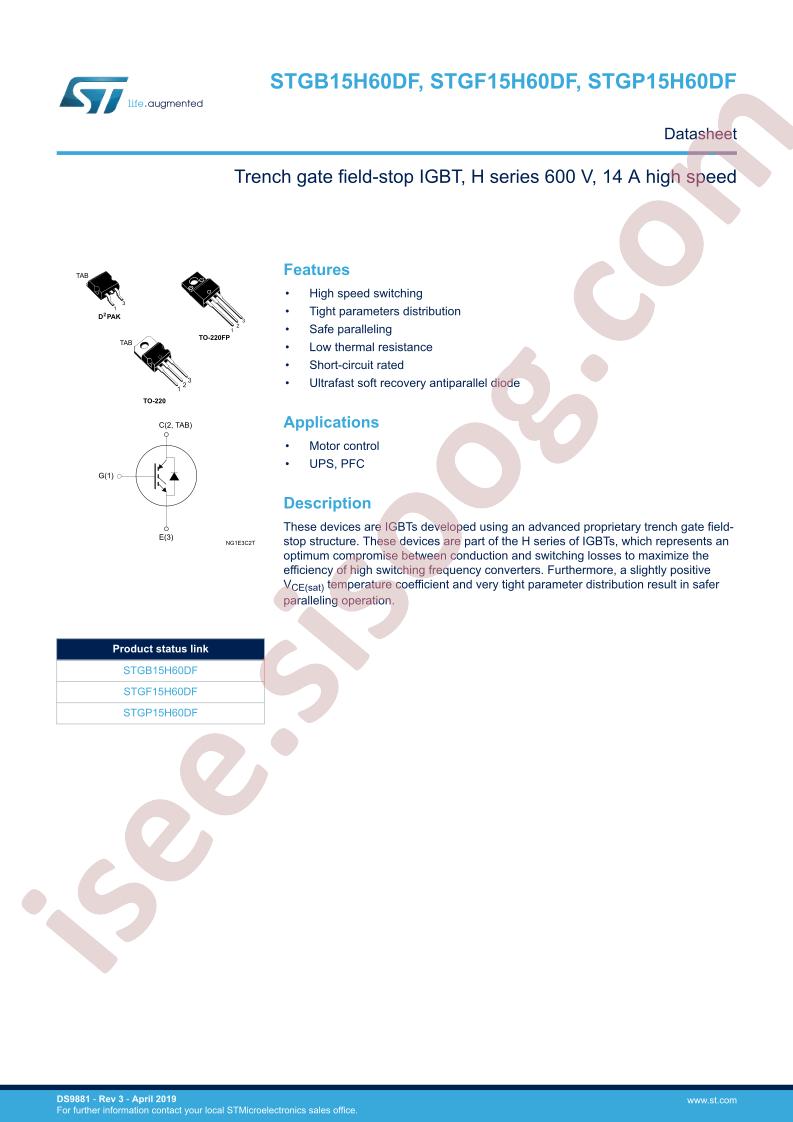

دیتاشیت STGB15H60DF

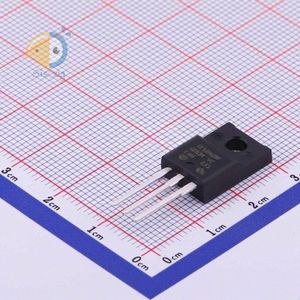

STGx15H60DF

مشخصات دیتاشیت

نام دیتاشیت STGx15H60DF
حجم فایل 798.743 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

دانلود دیتاشیت STGx15H60DF

STGx15H60DF Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • IGBT Type: Trench Field Stop
  • Voltage - Collector Emitter Breakdown (Max): 600V
  • Current - Collector (Ic) (Max): 30A
  • Current - Collector Pulsed (Icm): 60A
  • Vce(on) (Max) @ Vge, Ic: 2V @ 15V, 15A
  • Power - Max: 115W
  • Switching Energy: 136µJ (on), 207µJ (off)
  • Input Type: Standard
  • Gate Charge: 81nC
  • Td (on/off) @ 25°C: 24.5ns/118ns
  • Test Condition: 400V, 15A, 10Ohm, 15V
  • Reverse Recovery Time (trr): 103ns
  • Operating Temperature: -55°C ~ 175°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • Supplier Device Package: D2PAK
  • Base Part Number: STGB15
  • detail: IGBT Trench Field Stop 600V 30A 115W Surface Mount D2PAK
