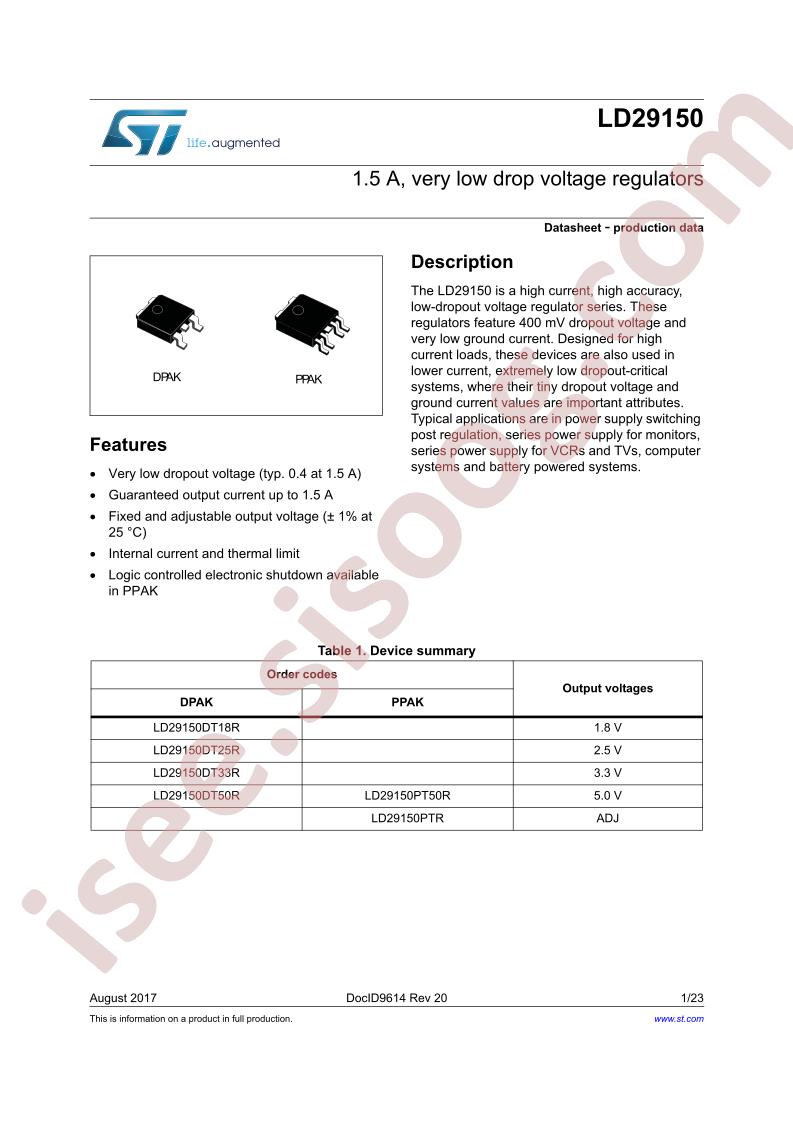

LD29150 xx Datasheet

LD29150 xx

Datasheet specifications

Datasheet's name LD29150 xx
File size 836.997 KB
File type pdf
Number of pages 23

Download Datasheet LD29150 xx

Download Datasheet

Other documentations

LD29150DT33R 23 pages

Technical specifications

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: STMicroelectronics LD29150DT50R
  • Output Type: Fixed
  • Output Current: 1.5A
  • Output Voltage: 5V
  • Dropout Voltage: 700mV@(1.5A)
  • Output Polarity: Positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 14V
  • Operating Temperature: -40°C~+125°C
  • Quiescent Current (Ground Current): 180uA
  • Power Supply Rejection Ratio (PSRR): 64dB@(120Hz)
  • Package: TO-252-2(DPAK)
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Configuration: Positive
  • Number of Regulators: 1
  • Voltage - Input (Max): 14V
  • Voltage - Output (Min/Fixed): 5V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.7V @ 1.5A
  • Current - Output: 1.5A
  • Current - Quiescent (Iq): 180µA
  • Current - Supply (Max): 80mA
  • PSRR: 64dB (120Hz)
  • Control Features: -
  • Protection Features: Over Current, Over Temperature
  • Mounting Type: Surface Mount
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Supplier Device Package: DPAK
  • Base Part Number: LD29150
