دیتاشیت SM4T26CAY

SM4TY

مشخصات دیتاشیت

نام دیتاشیت SM4TY
حجم فایل 218.877 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت SM4TY

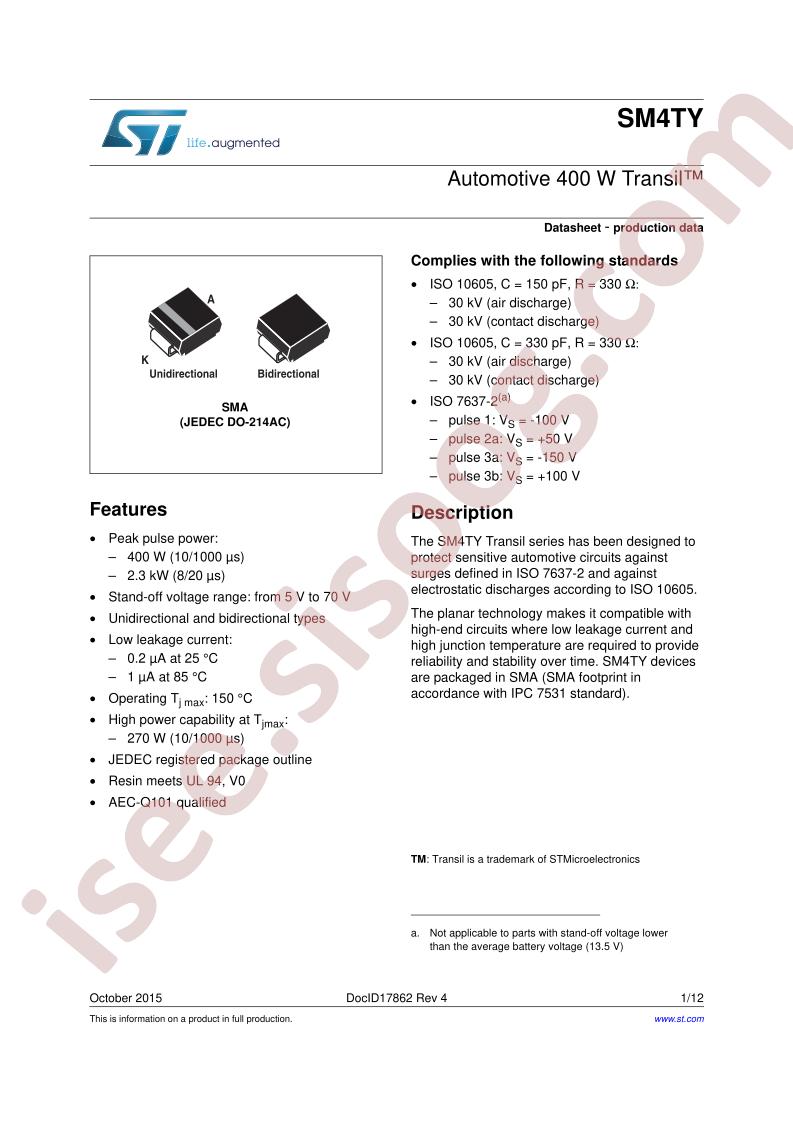

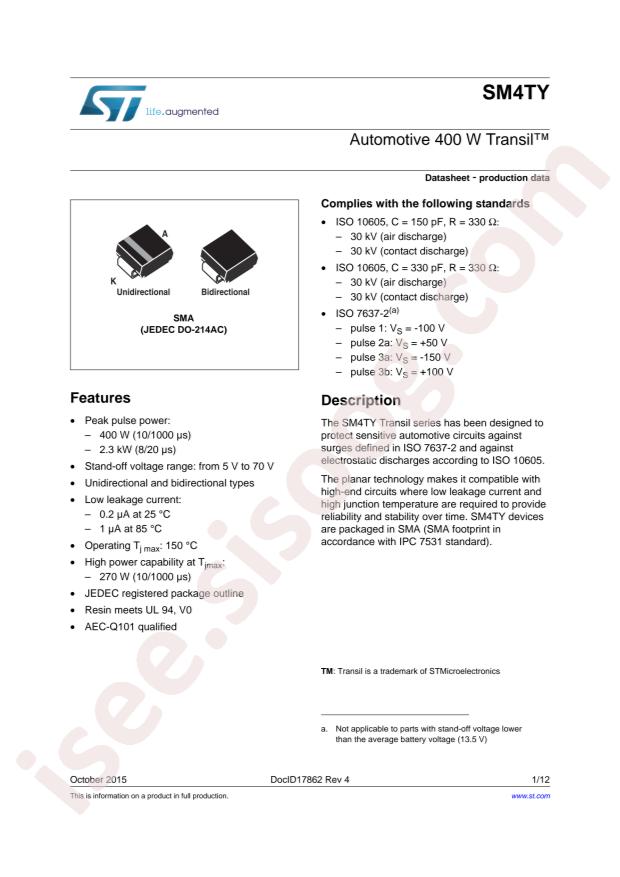

SM4TY Datasheet

مشخصات

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/TVS
  • Datasheet: STMicroelectronics SM4T26CAY
  • Breakdown Voltage: 24.4V
  • Bidirectional Channels: 1
  • Maximum Clamping Voltage: 48.3V
  • Reverse Leakage Current (Ir): 0.2uA
  • Reverse Stand-Off Voltage (Vrwm): 22V
  • Peak Pulse Current (Ipp)@10/1000us: 48A@8/20us
  • Peak Pulse Power Dissipation (Ppp)@10/1000us: 400W
  • Package: SMA(DO-214AC)
  • Manufacturer: STMicroelectronics
  • Series: Automotive, AEC-Q101, SM4TY, TRANSIL™
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Zener
  • Voltage - Reverse Standoff (Typ): 22V
  • Voltage - Breakdown (Min): 24.4V
  • Voltage - Clamping (Max) @ Ipp: 48.3V
  • Current - Peak Pulse (10/1000µs): 48A (8/20µs)
  • Power - Peak Pulse: 400W
  • Power Line Protection: No
  • Applications: Automotive
  • Capacitance @ Frequency: -
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: DO-214AC, SMA
  • Supplier Device Package: SMA (DO-214AC)
  • Base Part Number: SM4T
  • detail: 48.3V Clamp 48A (8/20µs) Ipp Tvs Diode Surface Mount SMA (DO-214AC)
