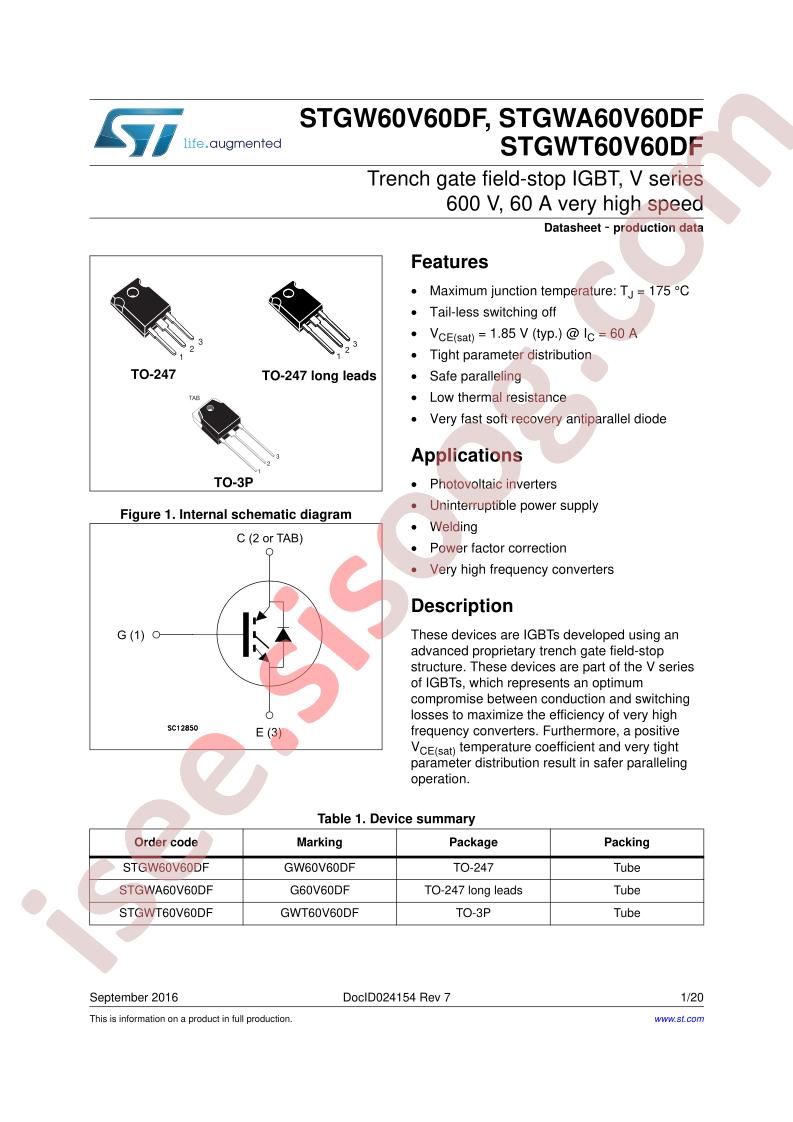

STGW(A,T)60V60DF دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STGW(A,T)60V60DF
|
|
حجم فایل
|
1664.142
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
20
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
IGBT Type:
Trench Field Stop
-
Voltage - Collector Emitter Breakdown (Max):
600V
-
Current - Collector (Ic) (Max):
80A
-
Current - Collector Pulsed (Icm):
240A
-
Vce(on) (Max) @ Vge, Ic:
2.3V @ 15V, 60A
-
Power - Max:
375W
-
Switching Energy:
750µJ (on), 550µJ (off)
-
Input Type:
Standard
-
Gate Charge:
334nC
-
Td (on/off) @ 25°C:
60ns/208ns
-
Test Condition:
400V, 60A, 4.7Ohm, 15V
-
Reverse Recovery Time (trr):
74ns
-
Operating Temperature:
-55°C ~ 175°C (TJ)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-3P-3, SC-65-3
-
Base Part Number:
STGWT60
-
detail:
IGBT Trench Field Stop 600V 80A 375W Through Hole
