دیتاشیت 2N7002K

2N7002K, 2V7002K

مشخصات دیتاشیت

نام دیتاشیت 2N7002K, 2V7002K
حجم فایل 411.23 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

دانلود دیتاشیت 2N7002K, 2V7002K

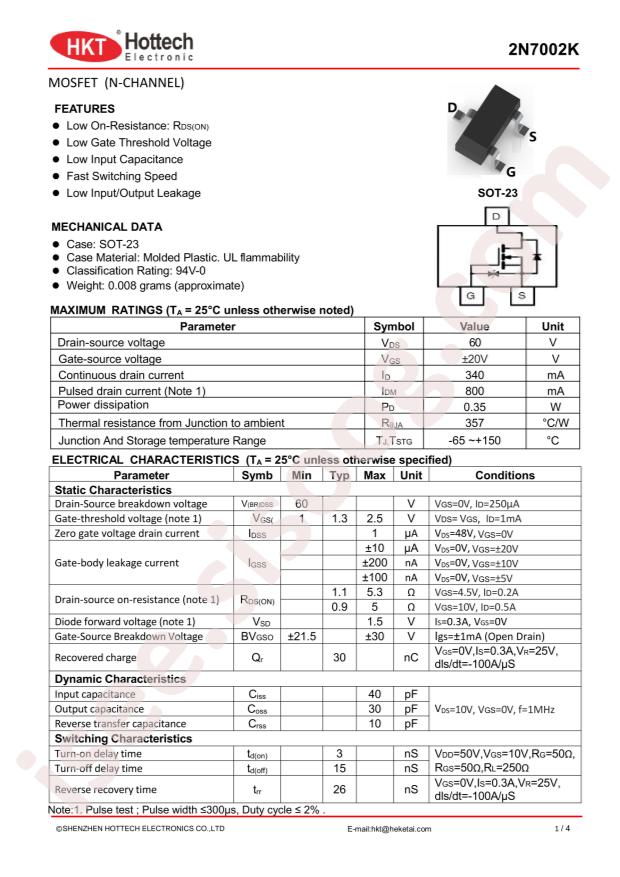

2N7002K, 2V7002K Datasheet

مشخصات

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: FUXINSEMI 2N7002K
  • Operating Temperature: +150°C@(Tj)
  • Power Dissipation (Pd): 350mW
  • Total Gate Charge (Qg@Vgs): 2.4nC@4.5V
  • Drain Source Voltage (Vdss): 60V
  • Input Capacitance (Ciss@Vds): 18pF@25V
  • Continuous Drain Current (Id): 340mA
  • Gate Threshold Voltage (Vgs(th)@Id): 2.5V@250uA
  • Reverse Transfer Capacitance (Crss@Vds): 7pF@25V
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 1.3Ω@10V,500mA
  • Package: SOT-23(TO-236)
  • Manufacturer: FUXINSEMI
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 60V
  • Current - Continuous Drain (Id) @ 25°C: 300mA (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
  • Rds On (Max) @ Id, Vgs: 2Ohm @ 500mA, 10V
  • Vgs(th) (Max) @ Id: 2.5V @ 250µA
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 50pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 350mW (Ta)
  • Mounting Type: Surface Mount
  • Supplier Device Package: SOT-23 (TO-236AB)
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Base Part Number: 2N7002
