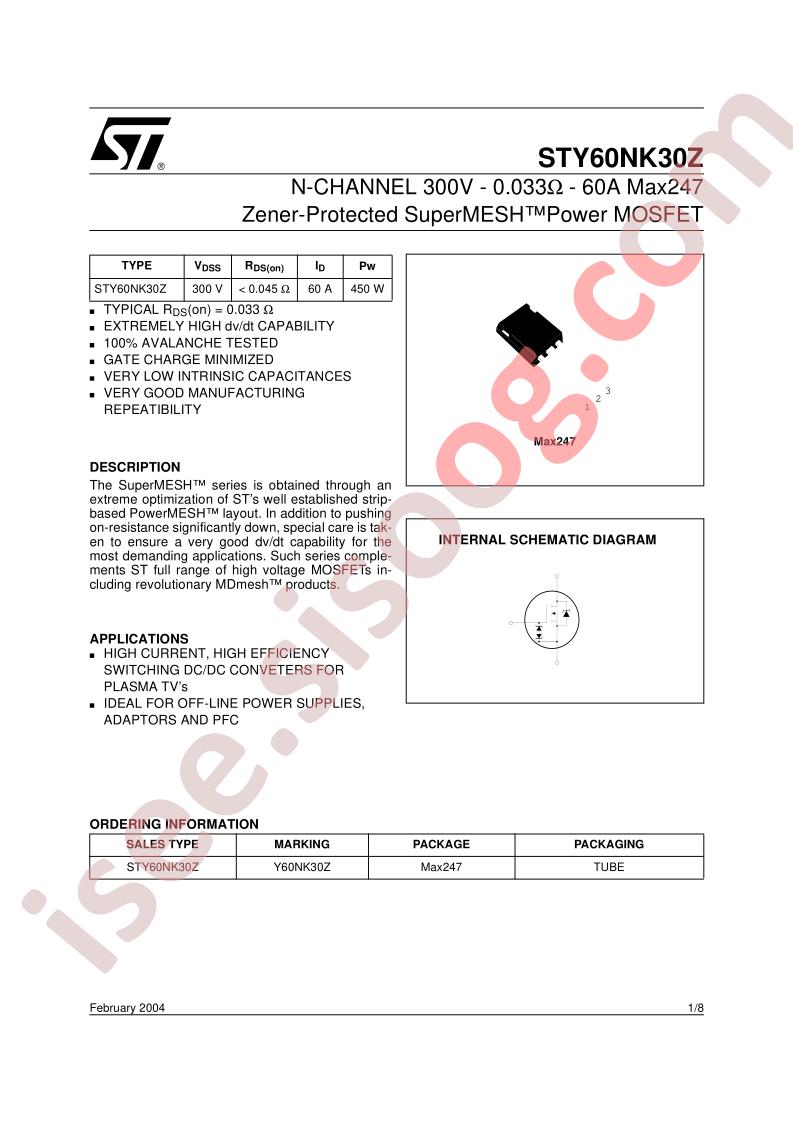

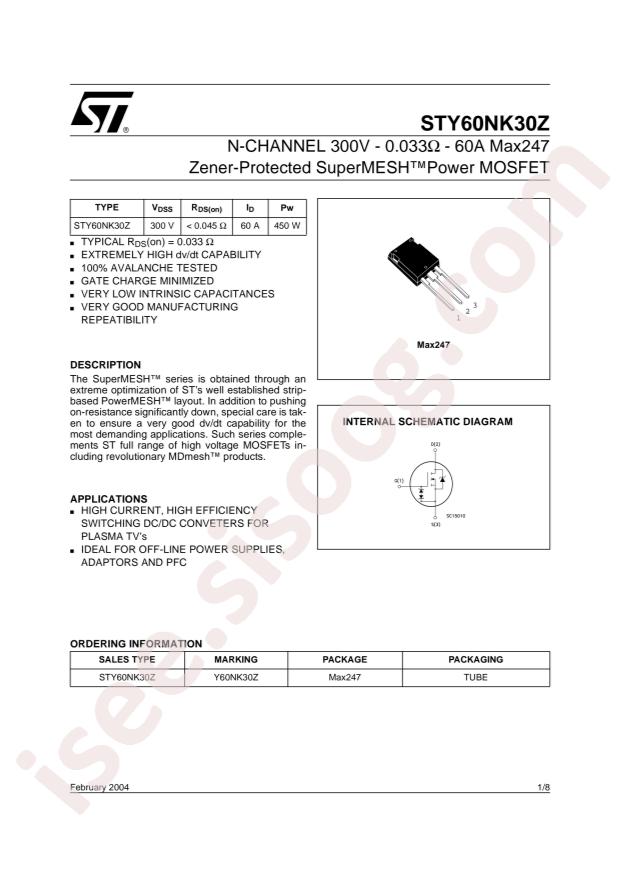

دیتاشیت STY60NK30Z
مشخصات دیتاشیت
| نام دیتاشیت |
STY60NK30Z
|
| حجم فایل |
194.723
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
8
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STY60NK30Z
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
450W
-
Total Gate Charge (Qg@Vgs):
220nC@10V
-
Drain Source Voltage (Vdss):
300V
-
Input Capacitance (Ciss@Vds):
7200pF@25V
-
Continuous Drain Current (Id):
60A
-
Gate Threshold Voltage (Vgs(th)@Id):
4.5V@100uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
45mΩ@10V,30A
-
Package:
-
-
Manufacturer:
STMicroelectronics
-
Series:
SuperMESH™
-
Packaging:
Tube
-
Part Status:
Not For New Designs
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
300V
-
Current - Continuous Drain (Id) @ 25°C:
60A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
45mOhm @ 30A, 10V
-
Vgs(th) (Max) @ Id:
4.5V @ 100µA
-
Gate Charge (Qg) (Max) @ Vgs:
220nC @ 10V
-
Vgs (Max):
±30V
-
Input Capacitance (Ciss) (Max) @ Vds:
7200pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
450W (Tc)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
MAX247™
-
Package / Case:
TO-247-3
-
Base Part Number:
STY60N
-
detail:
N-Channel 300V 60A (Tc) 450W (Tc) Through Hole MAX247™
