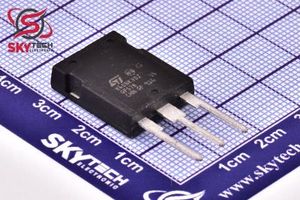

STY60NK30Z
در 1 فروشگاه قیمت هنوز مشخص نشده است
| Manufacturer | STMicroelectronics |
| Package | TO-247-3 |
| Datasheet | STY60NK30Z |
| Description | N-Channel 300V 60A (Tc) 450W (Tc) Through Hole MAX247™ |
فروشنده های STY60NK30Z
| قیمت | |||
| STY60NK30Z | بدون قیمت |
خرید اینترنتی
آخرین تغییر قیمت فروشگاه:
|
تغییرات قیمت
مشخصات STY60NK30Z
- RoHS true
- Type N Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet STMicroelectronics STY60NK30Z
- Operating Temperature -55°C~+150°C@(Tj)
- Power Dissipation (Pd) 450W
- Total Gate Charge (Qg@Vgs) 220nC@10V
- Drain Source Voltage (Vdss) 300V
- Input Capacitance (Ciss@Vds) 7200pF@25V
- Continuous Drain Current (Id) 60A
- Gate Threshold Voltage (Vgs(th)@Id) 4.5V@100uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 45mΩ@10V,30A
- Package -
- Manufacturer STMicroelectronics
- Series SuperMESH™
- Packaging Tube
- Part Status Not For New Designs
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 300V
- Current - Continuous Drain (Id) @ 25°C 60A (Tc)
- Drive Voltage (Max Rds On, Min Rds On) 10V
- Rds On (Max) @ Id, Vgs 45mOhm @ 30A, 10V
- Vgs(th) (Max) @ Id 4.5V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs 220nC @ 10V
- Vgs (Max) ±30V
- Input Capacitance (Ciss) (Max) @ Vds 7200pF @ 25V
- FET Feature -
- Power Dissipation (Max) 450W (Tc)
- Mounting Type Through Hole
- Supplier Device Package MAX247™
- Package / Case TO-247-3
- Base Part Number STY60N
- detail N-Channel 300V 60A (Tc) 450W (Tc) Through Hole MAX247™
