دیتاشیت ULN2004A

ULN200x(A,D1)

مشخصات دیتاشیت

نام دیتاشیت ULN200x(A,D1)
حجم فایل 773.001 کیلوبایت
نوع فایل pdf
تعداد صفحات 17

دانلود دیتاشیت ULN200x(A,D1)

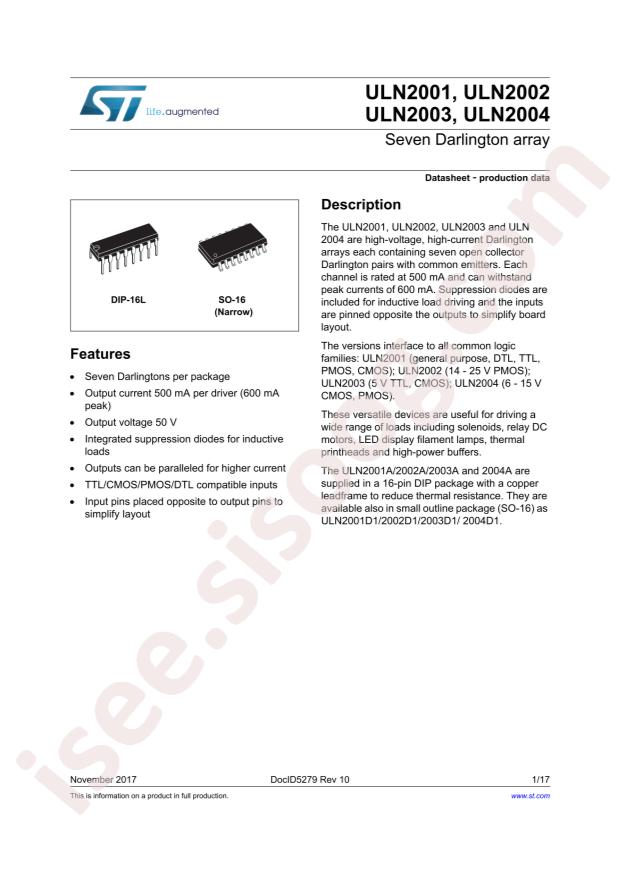

ULN200x(A,D1) Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Transistor Type: 7 NPN Darlington
  • Current - Collector (Ic) (Max): 500mA
  • Voltage - Collector Emitter Breakdown (Max): 50V
  • Vce Saturation (Max) @ Ib, Ic: 1.6V @ 500µA, 350mA
  • Current - Collector Cutoff (Max): 50µA
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 1000 @ 350mA, 2V
  • Power - Max: -
  • Frequency - Transition: -
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Through Hole
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Supplier Device Package: 16-DIP
  • Base Part Number: ULN2004
