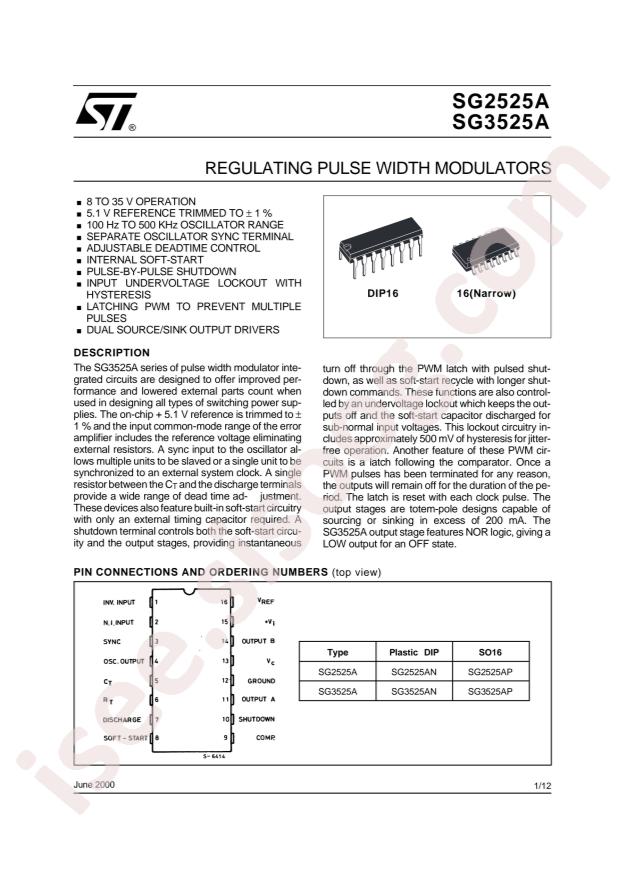

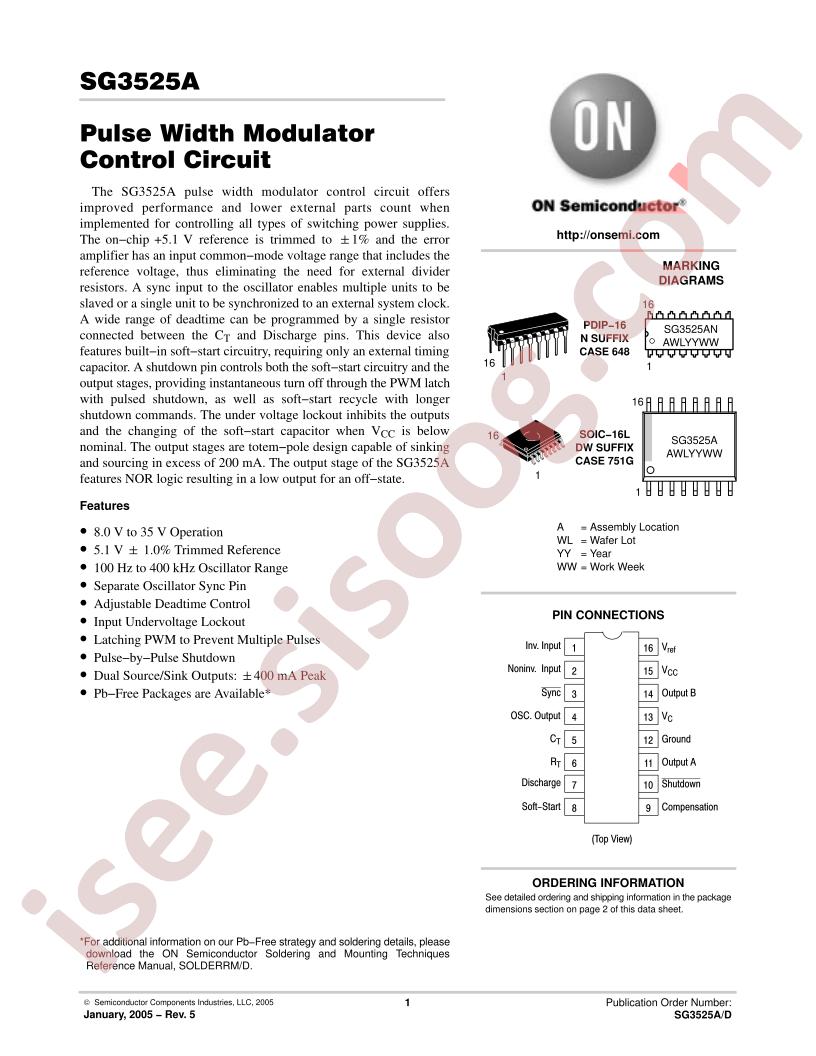

دیتاشیت SG2525AN
مشخصات دیتاشیت
| نام دیتاشیت |
SG2525AN
|
| حجم فایل |
89.509
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
12
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Datasheet:
STMicroelectronics SG3525AN
-
Package:
DIP-16
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Output Type:
Transistor Driver
-
Function:
Step-Up/Step-Down
-
Output Configuration:
Positive
-
Topology:
Push-Pull
-
Number of Outputs:
2
-
Output Phases:
1
-
Voltage - Supply (Vcc/Vdd):
8V ~ 35V
-
Frequency - Switching:
100Hz ~ 400kHz
-
Duty Cycle (Max):
49%
-
Synchronous Rectifier:
Yes
-
Clock Sync:
Yes
-
Serial Interfaces:
-
-
Control Features:
Enable, Frequency Control, Soft Start
-
Operating Temperature:
0°C ~ 70°C (TA)
-
Mounting Type:
Through Hole
-
Package / Case:
16-DIP (0.300", 7.62mm)
-
Supplier Device Package:
16-PDIP
-
Base Part Number:
SG3525A
