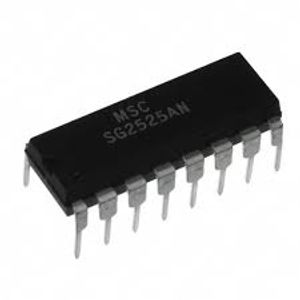

SG2525AN

SG2525AN

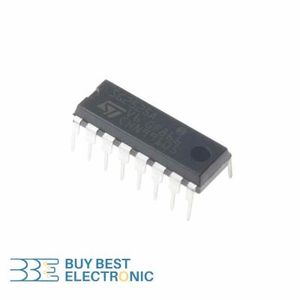

SG2525AN

در 3 فروشگاه

مشخصات فنی:
ManufacturerSTMicroelectronics
Package16-DIP (0.300", 7.62mm)
Datasheet SGx525A
Description Buck, Push-Pull Regulator Positive Output Step-Down, Step-Up/Step-Down DC-DC Controller IC 16-DIP
تغییرات قیمت
مشخصات
  • Manufacturer STMicroelectronics
  • Series -
  • Packaging Tube
  • Part Status Active
  • Output Type Transistor Driver
  • Function Step-Down, Step-Up/Step-Down
  • Output Configuration Positive
  • Topology Buck, Push-Pull
  • Number of Outputs 2
  • Output Phases 1
  • Voltage - Supply (Vcc/Vdd) 8V ~ 35V
  • Frequency - Switching 100Hz ~ 400kHz
  • Duty Cycle (Max) 49%
  • Synchronous Rectifier Yes
  • Clock Sync Yes
  • Serial Interfaces -
  • Control Features Enable, Soft Start
  • Operating Temperature -25°C ~ 85°C (TA)
  • Mounting Type Through Hole
  • Package / Case 16-DIP (0.300", 7.62mm)
  • Supplier Device Package 16-DIP
  • Base Part Number SG2525
  • detail Buck, Push-Pull Regulator Positive Output Step-Down, Step-Up/Step-Down DC-DC Controller IC 16-DIP
