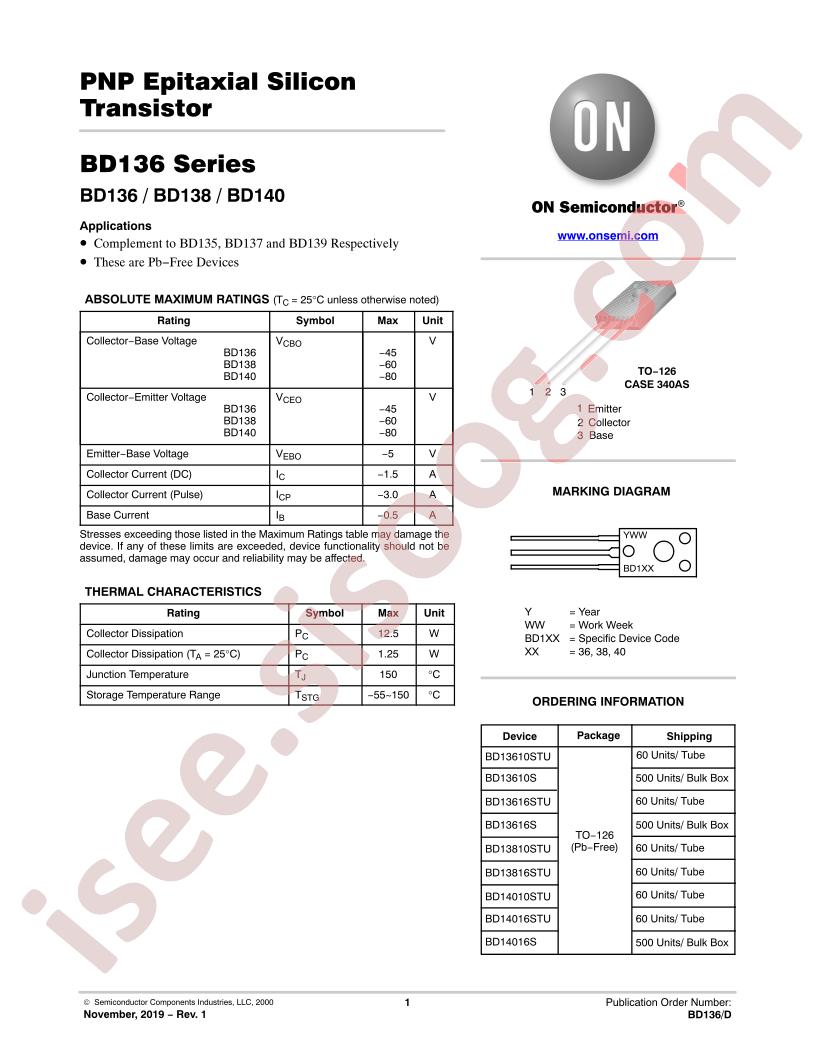

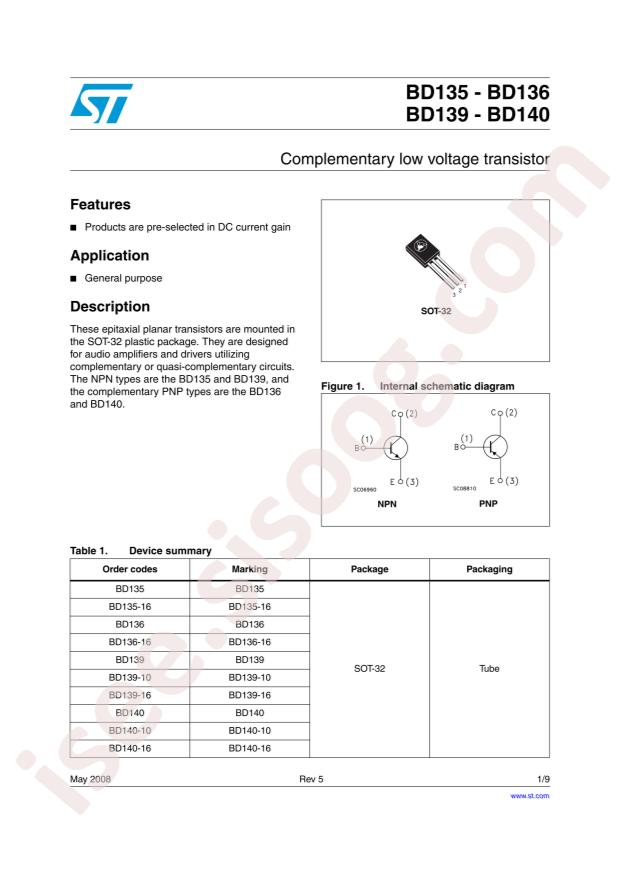

دیتاشیت BD136
مشخصات دیتاشیت
| نام دیتاشیت |
BD136,138,140
|
| حجم فایل |
315.427
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
Jiangsu Changjing Electronics Technology Co., Ltd. BD136
-
Package:
TO-126
-
Manufacturer:
Jiangsu Changjing Electronics Technology Co., Ltd.
-
Transistor Type:
PNP
-
Operating Temperature:
+150°C@(Tj)
-
Collector Current (Ic):
1.5A
-
Power Dissipation (Pd):
12.5W
-
Transition Frequency (fT):
-
-
DC Current Gain (hFE@Ic,Vce):
40@2V,150MA
-
Collector Cut-Off Current (Icbo):
100nA
-
Collector-Emitter Breakdown Voltage (Vceo):
45V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
500mV@500mA,50mA
-
Series:
-
-
Packaging:
Bulk
-
Part Status:
Obsolete
-
Current - Collector (Ic) (Max):
1.5A
-
Voltage - Collector Emitter Breakdown (Max):
45V
-
Vce Saturation (Max) @ Ib, Ic:
500mV @ 50mA, 500mA
-
Current - Collector Cutoff (Max):
100nA (ICBO)
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
40 @ 150mA, 2V
-
Power - Max:
1.25W
-
Frequency - Transition:
-
-
Mounting Type:
Through Hole
-
Package / Case:
TO-225AA, TO-126-3
-
Supplier Device Package:
TO-225AA
-
Base Part Number:
BD136
