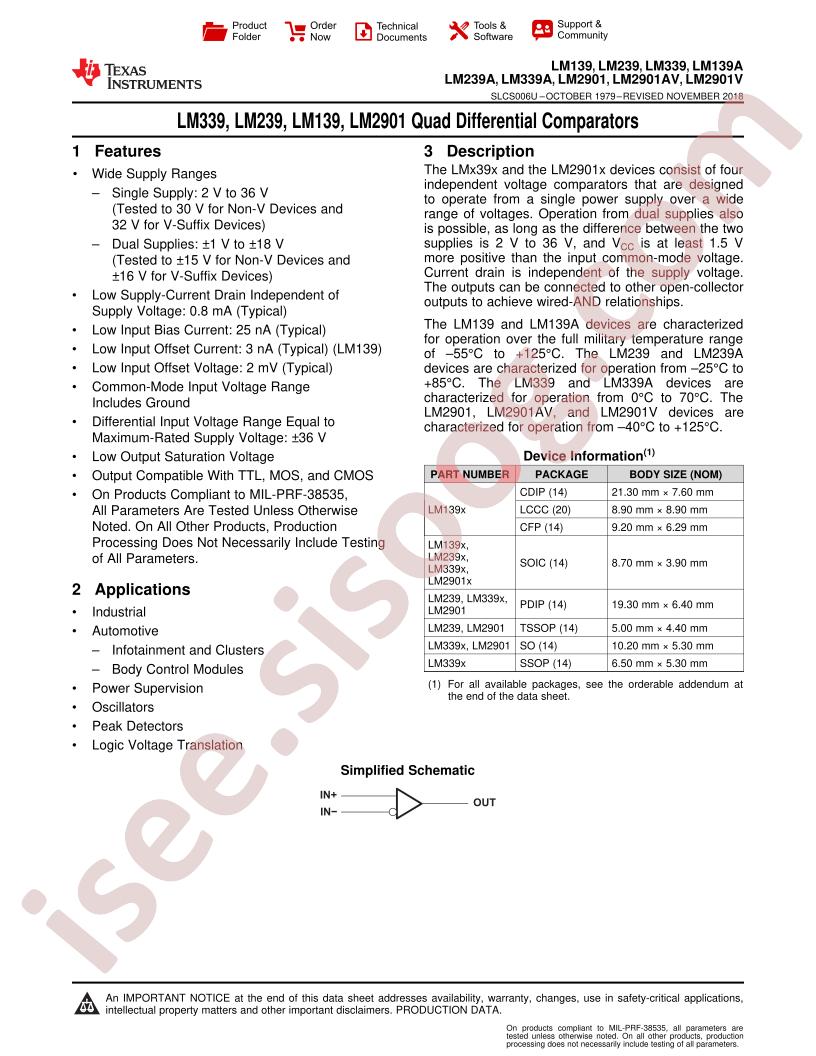

LM139,239,339(A), LM2901(AV,V) Datasheet

LM139,239,339(A), LM2901(AV,V)

Datasheet specifications

Datasheet's name LM139,239,339(A), LM2901(AV,V)
File size 1275.688 KB
File type pdf
Number of pages 33

Download Datasheet LM139,239,339(A), LM2901(AV,V)

Download Datasheet

Other documentations

LM339N 33 pages

Technical specifications

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Comparators
  • Datasheet: Texas Instruments LM339DR
  • Output Type: 开集;轨到轨
  • Supply Current: 2.5mA
  • Supply Voltage: 2V~30V;1V~15V
  • Number of Elements: 4
  • Operating Temperature: 0°C~+70°C
  • Input Bias Current (Ib): 0.25uA
  • Input Offset Voltage (Vos): 5mV
  • Input Hysteresis Voltage (Vhys): -
  • Common Mode Rejection Ratio (CMRR): -
  • Package: SOP-14
  • Manufacturer: Texas Instruments
  • Type: Differential
  • Packaging: Cut Tape (CT)
  • Base Part Number: LM339
  • Voltage - Input Offset (Max): 5mV @ 30V
  • Package / Case: 14-SOIC (0.154", 3.90mm Width)
  • Current - Output (Typ): 20mA
  • Voltage - Supply, Single/Dual (±): 2V ~ 30V, ±1V ~ 15V
  • Hysteresis: -
  • Supplier Device Package: 14-SOIC
  • Current - Input Bias (Max): 0.25µA @ 5V
  • Mounting Type: Surface Mount
  • Propagation Delay (Max): -
  • Series: -
  • Part Status: Active
  • CMRR, PSRR (Typ): -
  • Current - Quiescent (Max): 2.5mA
