دیتاشیت ADG508AKN

ADG508A, 509A Series Datasheet

مشخصات دیتاشیت

نام دیتاشیت ADG508A, 509A Series Datasheet
حجم فایل 390.086 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

دانلود دیتاشیت ADG508A, 509A Series Datasheet

ADG508A, 509A Series Datasheet Datasheet

مشخصات

  • Manufacturer: Analog Devices Inc.
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Switch Circuit: -
  • Multiplexer/Demultiplexer Circuit: 8:1
  • Number of Circuits: 1
  • On-State Resistance (Max): 300Ohm
  • Channel-to-Channel Matching (ΔRon): 15Ohm
  • Voltage - Supply, Single (V+): 10.8V ~ 16.5V
  • Voltage - Supply, Dual (V±): ±10.8V ~ 16.5V
  • Switch Time (Ton, Toff) (Max): 300ns, 300ns
  • -3db Bandwidth: -
  • Charge Injection: 4pC
  • Channel Capacitance (CS(off), CD(off)): 5pF, 22pF
  • Current - Leakage (IS(off)) (Max): 1nA
  • Crosstalk: -
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Through Hole

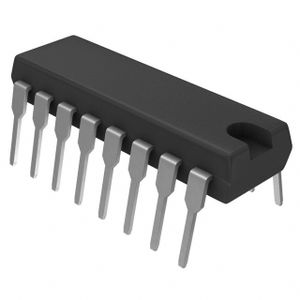

  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Supplier Device Package: 16-PDIP
  • Base Part Number: ADG508
