دیتاشیت LM2936MP-3.3
مشخصات دیتاشیت
| نام دیتاشیت | LM2936 Datasheet |
|---|---|
| حجم فایل | 1664.945 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 40 |

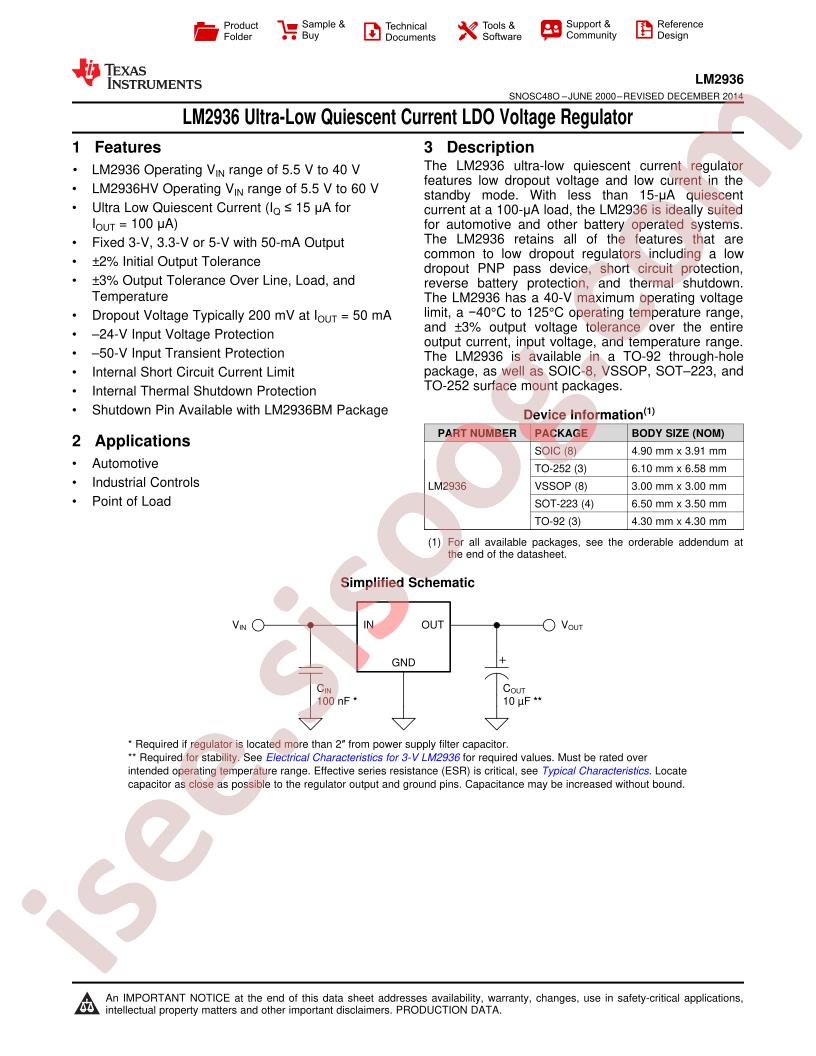

دانلود دیتاشیت LM2936 Datasheet |
LM2936 Datasheet Datasheet |
|---|
مشخصات
- Voltage Dropout (Max): 0.2V @ 50mA
- Current - Supply (Max): 2.5mA
- Current - Output: 50mA
- Current - Quiescent (Iq): 15µA
- Voltage - Input (Max): 40V
- Base Part Number: LM2936
- Operating Temperature: -40°C ~ 125°C
- Package / Case: TO-261-4, TO-261AA
- Voltage - Output (Max): -
- Output Configuration: Positive
- Series: -
- Supplier Device Package: SOT-223-4
- PSRR: 60dB (120Hz)
- Part Status: Not For New Designs
- Mounting Type: Surface Mount
- Control Features: -
- Protection Features: Over Temperature, Reverse Polarity, Short Circuit
- Voltage - Output (Min/Fixed): 3.3V
- Manufacturer: Texas Instruments
- Number of Regulators: 1
- Packaging: Cut Tape (CT)
- Output Type: Fixed
- detail: Linear Voltage Regulator IC 1 Output 50mA SOT-223-4
