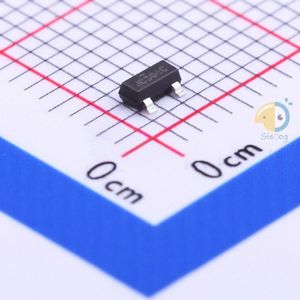

FDV304P

FDV304P

FDV304P

در 0 فروشگاه

قیمت هنوز مشخص نشده است

این محصول در حال حاضر فروشنده ای ندارد!

مشخصات فنی:
Manufacturer onsemi
Package TO-236-3, SC-59, SOT-23-3
Datasheet FDV304P
Description P-Channel 25V 460mA (Ta) 350mW (Ta) Surface Mount SOT-23

sellers FDV304P

فروشگاهی یافت نشد

پالت

تغییرات قیمت

پالت

مشخصات

  • RoHS true
  • Type P Channel
  • Category Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet onsemi FDV304P
  • Operating Temperature -55°C~+150°C@(Tj)
  • Power Dissipation (Pd) 350mW
  • Total Gate Charge (Qg@Vgs) 1.5nC@4.5V
  • Drain Source Voltage (Vdss) 25V
  • Input Capacitance (Ciss@Vds) 63pF@10V
  • Continuous Drain Current (Id) 460mA
  • Gate Threshold Voltage (Vgs(th)@Id) 1.5V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id) 1.1Ω@4.5V,500mA
  • Package SOT-23(TO-236)
  • Manufacturer onsemi
  • Series -
  • Packaging Cut Tape (CT)
  • Part Status Active
  • FET Type P-Channel
  • Technology MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss) 25V
  • Current - Continuous Drain (Id) @ 25°C 460mA (Ta)
  • Drive Voltage (Max Rds On, Min Rds On) 2.7V, 4.5V
  • Rds On (Max) @ Id, Vgs 1.1Ohm @ 500mA, 4.5V
  • Vgs(th) (Max) @ Id 1.5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs 1.5nC @ 4.5V
  • Vgs (Max) ±8V
  • Input Capacitance (Ciss) (Max) @ Vds 63pF @ 10V
  • FET Feature -
  • Power Dissipation (Max) 350mW (Ta)
  • Mounting Type Surface Mount
  • Supplier Device Package SOT-23
  • Package / Case TO-236-3, SC-59, SOT-23-3
  • Base Part Number FDV30
  • detail P-Channel 25V 460mA (Ta) 350mW (Ta) Surface Mount SOT-23
