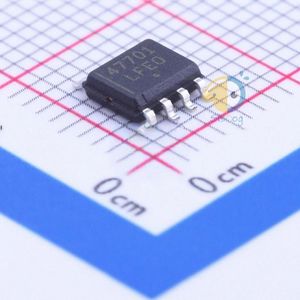

NCV47701PDAJR2G
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | 8-SOIC (0.154", 3.90mm Width) |
| Datasheet | NCV47701 |
| Description | Linear Voltage Regulator IC 1 Output 350mA 8-SOIC |
فروشنده های NCV47701PDAJR2G
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات NCV47701PDAJR2G
- RoHS true
- Category Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet onsemi NCV47701PDAJR2G
- Output Type Adjustable
- Output Current 350mA
- Output Voltage 5V~20V
- Dropout Voltage 500mV@(150mA)
- Output Polarity Positive
- Number of Outputs 1
- Maximum Input Voltage 40V
- Operating Temperature -40°C~+150°C
- Quiescent Current (Ground Current) 230uA
- Power Supply Rejection Ratio (PSRR) 70dB@(100Hz)
- Package SOP-8-EP
- Manufacturer onsemi
- Series Automotive, AEC-Q100
- Packaging Cut Tape (CT)
- Part Status Active
- Output Configuration Positive
- Number of Regulators 1
- Voltage - Input (Max) 40V
- Voltage - Output (Min/Fixed) 5V
- Voltage - Output (Max) 20V
- Voltage Dropout (Max) 0.5V @ 150mA
- Current - Output 350mA
- Current - Quiescent (Iq) 230µA
- Current - Supply (Max) 50mA
- PSRR 70dB (100Hz)
- Control Features Enable
- Protection Features Over Current, Over Temperature, Reverse Polarity
- Mounting Type Surface Mount
- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package 8-SOIC
- Base Part Number NCV47701
- detail Linear Voltage Regulator IC 1 Output 350mA 8-SOIC
