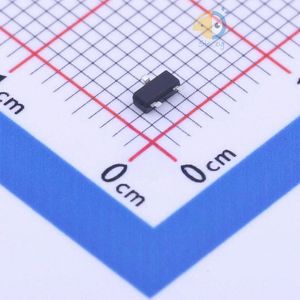

SM12T1G
در 0 فروشگاه
قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | TO-236-3, SC-59, SOT-23-3 |
| Datasheet | SM05T1 Series, SZSM05T1G |
| Description | 19V Clamp 12A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-3 (TO-236) |
sellers SM12T1G
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات
- RoHS true
- Category TVS/Fuse/Board Level Protection/ESD Protection Devices
- Polarity Unidirectional
- Datasheet onsemi SM12T1G
- Number of Lines 2
- Clamping Voltage@Ipp 19V
- Operating Temperature -55°C~+150°C@(Tj)
- Breakdown Voltage (VBR) 13.3V
- Peak Pulse Power(Ppp)@8/20us 300W
- Junction Capacitance(Cj)@1MHz -
- Peak Pulse Current(Ipp)@8/20us 12A
- Reverse Stand-Off Voltage (Vrwm) 12V
- Package SOT-23(TO-236)
- Manufacturer onsemi
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- Type Zener
- Unidirectional Channels 2
- Voltage - Reverse Standoff (Typ) 12V
- Voltage - Breakdown (Min) 13.3V
- Voltage - Clamping (Max) @ Ipp 19V
- Current - Peak Pulse (10/1000µs) 12A (8/20µs)
- Power - Peak Pulse 300W
- Power Line Protection No
- Applications General Purpose
- Capacitance @ Frequency -
- Mounting Type Surface Mount
- Package / Case TO-236-3, SC-59, SOT-23-3
- Supplier Device Package SOT-23-3 (TO-236)
- Base Part Number SM12
- detail 19V Clamp 12A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-3 (TO-236)
