| Manufacturer | onsemi |
| Package | DO-214AC, SMA |
| Datasheet | ES1F - ES1J |

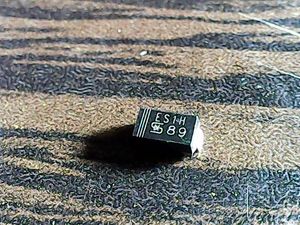

| Description | Diode Standard 500V 1A Surface Mount SMA (DO-214AC) |
sellers ES1H
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات
- RoHS true
- Category Diodes/Diodes - Fast Recovery Rectifiers
- Datasheet onsemi ES1H
- Diode Configuration -
- Reverse Voltage (Vr) 500V
- Operating Temperature +150°C@(Tj)
- Forward Voltage (Vf@If) 1.7V@1A
- Reverse Leakage Current 5uA@500V
- Reverse Recovery Time (trr) 35ns
- Average Rectified Current (Io) 1A
- Package SMA(DO-214AC)
- Manufacturer onsemi
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- Diode Type Standard
- Voltage - DC Reverse (Vr) (Max) 500V
- Current - Average Rectified (Io) 1A
- Voltage - Forward (Vf) (Max) @ If 1.7V @ 1A
- Speed Fast Recovery =< 500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr 5µA @ 500V
- Capacitance @ Vr, F -
- Mounting Type Surface Mount
- Package / Case DO-214AC, SMA
- Supplier Device Package SMA (DO-214AC)
- Operating Temperature - Junction 150°C (Max)
- Base Part Number ES1
- detail Diode Standard 500V 1A Surface Mount SMA (DO-214AC)
