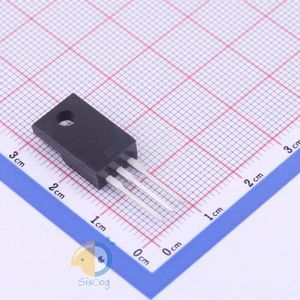

MJF31CG
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | TO-220-3 Full Pack |
| Datasheet | MJF31, 32C |
| Description | Bipolar (BJT) Transistor NPN 100V 3A 3MHz 2W Through Hole TO-220FP |
فروشنده های MJF31CG
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات MJF31CG
- RoHS true
- Category Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
- Datasheet onsemi MJF31CG
- Transistor Type NPN
- Operating Temperature -65°C~+150°C@(Tj)
- Collector Current (Ic) 3A
- Power Dissipation (Pd) 2W
- Transition Frequency (fT) 3MHz
- DC Current Gain (hFE@Ic,Vce) 10@3A,4V
- Collector Cut-Off Current (Icbo) 300uA
- Collector-Emitter Breakdown Voltage (Vceo) 100V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib) 1.2V@3A,375mA
- Package TO-220FPAB-3
- Manufacturer onsemi
- Series -
- Packaging Tube
- Part Status Obsolete
- Current - Collector (Ic) (Max) 3A
- Voltage - Collector Emitter Breakdown (Max) 100V
- Vce Saturation (Max) @ Ib, Ic 1.2V @ 375mA, 3A
- Current - Collector Cutoff (Max) 300µA
- DC Current Gain (hFE) (Min) @ Ic, Vce 10 @ 3A, 4V
- Power - Max 2W
- Frequency - Transition 3MHz
- Mounting Type Through Hole
- Package / Case TO-220-3 Full Pack
- Supplier Device Package TO-220FP
- Base Part Number MJF31
- detail Bipolar (BJT) Transistor NPN 100V 3A 3MHz 2W Through Hole TO-220FP
