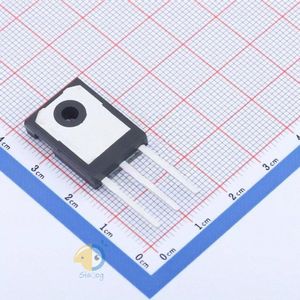

FGH20N60SFDTU
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | TO-247-3 |
| Datasheet | FGH20N60SFDTU |
| Description | IGBT Field Stop 600V 40A 165W Through Hole TO-247-3 |
فروشنده های FGH20N60SFDTU
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات FGH20N60SFDTU
- RoHS true
- Type Field Stop
- Category Triode/MOS Tube/Transistor/IGBTs
- Datasheet onsemi FGH20N60SFDTU
- Operating Temperature -55°C~+150°C@(Tj)
- Collector Current (Ic) 40A
- Power Dissipation (Pd) 165W
- Turn?on Delay Time (Td(on)) 13ns
- Input Capacitance (Cies@Vce) -
- Turn?on Switching Loss (Eon) 0.37mJ
- Total Gate Charge (Qg@Ic,Vge) 65nC
- Turn?off Delay Time (Td(off)) 90ns
- Pulsed Collector Current (Icm) 60A
- Turn?off Switching Loss (Eoff) 0.16mJ
- Diode Reverse Recovery Time (Trr) 34ns
- Collector-Emitter Breakdown Voltage (Vces) 600V
- Gate-Emitter Threshold Voltage (Vge(th)@Ic) 2.8V@15V,20A
- Package TO-247
- Manufacturer onsemi
- Series -
- Packaging Tube
- Part Status Active
- IGBT Type Field Stop
- Voltage - Collector Emitter Breakdown (Max) 600V
- Current - Collector (Ic) (Max) 40A
- Current - Collector Pulsed (Icm) 60A
- Vce(on) (Max) @ Vge, Ic 2.8V @ 15V, 20A
- Power - Max 165W
- Switching Energy 370µJ (on), 160µJ (off)
- Input Type Standard
- Gate Charge 65nC
- Td (on/off) @ 25°C 13ns/90ns
- Test Condition 400V, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr) 34ns
- Mounting Type Through Hole
- Package / Case TO-247-3
- Supplier Device Package TO-247-3
- Base Part Number FGH20
- detail IGBT Field Stop 600V 40A 165W Through Hole TO-247-3
