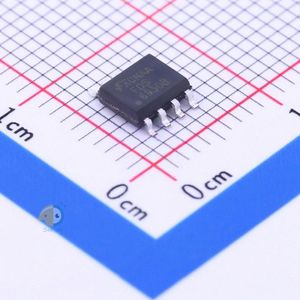

FDS6930B
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | 8-SOIC (0.154", 3.90mm Width) |
| Datasheet | FDS6930B |
| Description | Mosfet Array 2 N-Channel (Dual) 30V 5.5A 900mW Surface Mount 8-SOIC |
فروشنده های FDS6930B
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات FDS6930B
- RoHS true
- Type 2 N-Channel
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet onsemi FDS6930B
- Operating Temperature -55°C~+150°C@(Tj)
- Power Dissipation (Pd) 900mW
- Total Gate Charge (Qg@Vgs) 3.8nC@5V
- Drain Source Voltage (Vdss) 30V
- Input Capacitance (Ciss@Vds) 412pF@15V
- Continuous Drain Current (Id) 5.5A
- Gate Threshold Voltage (Vgs(th)@Id) 3V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 38mΩ@10V,5.5A
- Package SOP-8
- Manufacturer onsemi
- Series PowerTrench®
- Packaging Cut Tape (CT)
- Part Status Active
- FET Type 2 N-Channel (Dual)
- FET Feature Logic Level Gate
- Drain to Source Voltage (Vdss) 30V
- Current - Continuous Drain (Id) @ 25°C 5.5A
- Rds On (Max) @ Id, Vgs 38mOhm @ 5.5A, 10V
- Vgs(th) (Max) @ Id 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs 3.8nC @ 5V
- Input Capacitance (Ciss) (Max) @ Vds 412pF @ 15V
- Power - Max 900mW
- Mounting Type Surface Mount
- Package / Case 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package 8-SOIC
- Base Part Number FDS69
- detail Mosfet Array 2 N-Channel (Dual) 30V 5.5A 900mW Surface Mount 8-SOIC
