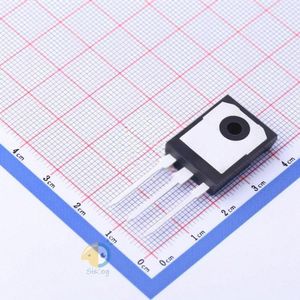

IXFH44N50P
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | IXYS |
| Package | TO-247-3 |
| Datasheet | IXF(H,K,T)44N50P |
| Description | N-Channel 500V 44A (Tc) 658W (Tc) Through Hole TO-247AD (IXFH) |
فروشنده های IXFH44N50P
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات IXFH44N50P
- RoHS true
- Category Triode/MOS Tube/Transistor/MOSFETs
- Datasheet Littelfuse/IXYS IXFH44N50P
- Operating Temperature -55°C~+150°C@(Tj)
- Power Dissipation (Pd) 658W
- Total Gate Charge (Qg@Vgs) 98nC@10V
- Drain Source Voltage (Vdss) 500V
- Input Capacitance (Ciss@Vds) 5440pF@25V
- Continuous Drain Current (Id) 44A
- Gate Threshold Voltage (Vgs(th)@Id) 5V@4mA
- Drain Source On Resistance (RDS(on)@Vgs,Id) 140mΩ@22A,10V
- Package TO-247-3
- Manufacturer IXYS
- Series HiPerFET™, PolarHT™
- Packaging Tube
- Part Status Active
- FET Type N-Channel
- Technology MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss) 500V
- Current - Continuous Drain (Id) @ 25°C 44A (Tc)
- Drive Voltage (Max Rds On, Min Rds On) 10V
- Rds On (Max) @ Id, Vgs 140mOhm @ 22A, 10V
- Vgs(th) (Max) @ Id 5V @ 4mA
- Gate Charge (Qg) (Max) @ Vgs 98nC @ 10V
- Vgs (Max) ±30V
- Input Capacitance (Ciss) (Max) @ Vds 5440pF @ 25V
- FET Feature -
- Power Dissipation (Max) 658W (Tc)
- Mounting Type Through Hole
- Supplier Device Package TO-247AD (IXFH)
- Package / Case TO-247-3
- detail N-Channel 500V 44A (Tc) 658W (Tc) Through Hole TO-247AD (IXFH)
