UA78M05CKVURG3
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Texas Instruments |

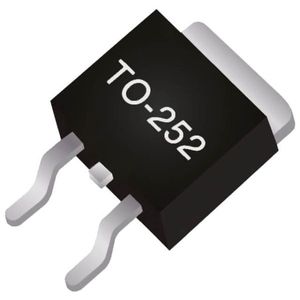

| Package | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Datasheet | UA78M05,06,08,09,10,12,33 |
| Description | Linear Voltage Regulator IC 1 Output 500mA TO-252-3 |
فروشنده های UA78M05CKVURG3
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات UA78M05CKVURG3
- RoHS true
- Category Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet Texas Instruments UA78M05CKVURG3
- Output Current 500mA
- Output Voltage 5V
- Dropout Voltage 2V@(350mA)
- Output Polarity positive
- Number of Outputs 1
- Maximum Input Voltage 25V
- Operating Temperature 0°C~+125°C
- Power Supply Rejection Ratio (PSRR) 80dB@(120Hz)
- Package TO-252
- Manufacturer Texas Instruments
- Number of Regulators 1
- Base Part Number UA78M
- Voltage - Input (Max) 25V
- Supplier Device Package TO-252-3
- Voltage - Output (Max) -
- Packaging Cut Tape (CT)
- Mounting Type Surface Mount
- Protection Features Over Current, Over Temperature, Short Circuit
- Control Features -
- Voltage - Output (Min/Fixed) 5V
- Output Type Fixed
- Voltage Dropout (Max) 2V @ 350mA
- Part Status Active
- Series -
- Current - Output 500mA
- PSRR 80dB (120Hz)
- Output Configuration Positive
- Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
- detail Linear Voltage Regulator IC 1 Output 500mA TO-252-3
