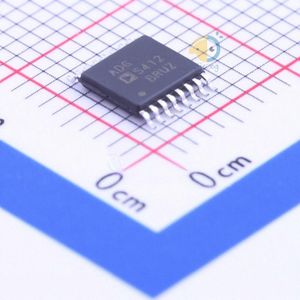

ADG5412BRUZ-REEL7
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Analog Devices |
| Package | 16-TSSOP (0.173", 4.40mm Width) |
| Datasheet | ADG5412/13 |
| Description | 4 Circuit IC Switch 1:1 10Ohm 16-TSSOP |
فروشنده های ADG5412BRUZ-REEL7
فروشگاهی یافت نشد
مشخصات ADG5412BRUZ-REEL7
- RoHS true
- Category Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet Analog Devices ADG5412BRUZ-REEL7
- Turn-on time 187ns
- Turn-off time 138ns
- Supply Voltage 9V~40V
- Switch Circuit SPST(SPST)-Normal Open
- Number of Channels 4
- On-State Resistance (Max) 10Ω
- Package TSSOP-16
- Manufacturer Analog Devices
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- Multiplexer/Demultiplexer Circuit 1:1
- Number of Circuits 4
- Channel-to-Channel Matching (ΔRon) 350mOhm
- Voltage - Supply, Single (V+) 9V ~ 40V
- Voltage - Supply, Dual (V±) ±9V ~ 22V
- Switch Time (Ton, Toff) (Max) 187ns, 138ns
- -3db Bandwidth 160MHz
- Charge Injection 310pC
- Channel Capacitance (CS(off), CD(off)) 17pF, 17pF
- Current - Leakage (IS(off)) (Max) 250pA
- Crosstalk -70dB @ 1MHz
- Operating Temperature -40°C ~ 125°C (TA)
- Mounting Type Surface Mount
- Package / Case 16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package 16-TSSOP
- Base Part Number ADG5412
- detail 4 Circuit IC Switch 1:1 10Ohm 16-TSSOP
فروشنده های ADG5412BRUZ-REEL7
فروشگاهی یافت نشد
