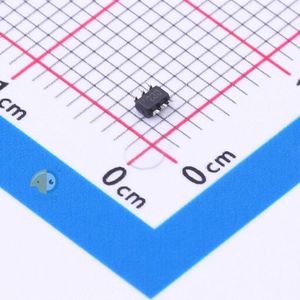

ADG839YKSZ-500RL7
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Analog Devices |
| Package | 6-TSSOP, SC-88, SOT-363 |
| Datasheet | ADG839 |
| Description | 1 Circuit IC Switch 2:1 500mOhm SC-70-6 |
فروشنده های ADG839YKSZ-500RL7
فروشگاهی یافت نشد
مشخصات ADG839YKSZ-500RL7
- RoHS true
- Category Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet Analog Devices ADG839YKSZ-500RL7
- Turn-on time 16ns
- Turn-off time 8.5ns
- Supply Voltage 1.65V~3.6V
- Switch Circuit SPDT(SPDT)
- Number of Channels 1
- On-State Resistance (Max) 500mΩ
- Package SC-70-6
- Manufacturer Analog Devices
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- Multiplexer/Demultiplexer Circuit 2:1
- Number of Circuits 1
- Channel-to-Channel Matching (ΔRon) 40mOhm
- Voltage - Supply, Single (V+) 1.65V ~ 3.6V
- Voltage - Supply, Dual (V±) -
- Switch Time (Ton, Toff) (Max) 16ns, 8.5ns
- -3db Bandwidth 25MHz
- Charge Injection 70pC
- Channel Capacitance (CS(off), CD(off)) 74pF
- Current - Leakage (IS(off)) (Max) 200pA (Typ)
- Crosstalk -57dB @ 100kHz
- Operating Temperature -40°C ~ 125°C (TA)
- Mounting Type Surface Mount
- Package / Case 6-TSSOP, SC-88, SOT-363
- Supplier Device Package SC-70-6
- Base Part Number ADG839
- detail 1 Circuit IC Switch 2:1 500mOhm SC-70-6
