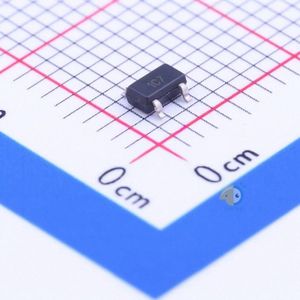

MIC5317-1.0YM5-T5
در 0 فروشگاه
قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | Microchip Tech |
| Package | SC-74A, SOT-753 |
| Datasheet | MIC5317 Datasheet |
| Description | Linear Voltage Regulator IC 1 Output 150mA SOT-23-5 |
sellers MIC5317-1.0YM5-T5
فروشگاهی یافت نشد
مشخصات
- RoHS true
- Category Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet Microchip Tech MIC5317-1.0YM5-T5
- Output Type Fixed
- Output Current 150mA
- Output Voltage 1V
- Dropout Voltage 380mV@(150mA)
- Output Polarity Positive
- Number of Outputs 1
- Maximum Input Voltage 6V
- Operating Temperature -40°C~+125°C
- Quiescent Current (Ground Current) 39uA
- Power Supply Rejection Ratio (PSRR) 80dB
- Package SOT-23-5
- Manufacturer Microchip Tech
- Series -
- Packaging Cut Tape (CT)
- Part Status Discontinued at Digi-Key
- Output Configuration Positive
- Number of Regulators 1
- Voltage - Input (Max) 6V
- Voltage - Output (Min/Fixed) 1V
- Voltage - Output (Max) -
- Voltage Dropout (Max) 0.38V @ 150mA
- Current - Output 150mA
- Current - Quiescent (Iq) 39µA
- PSRR 80dB ~ 65dB (1kHz ~ 10kHz)
- Control Features Enable
- Protection Features Over Current, Over Temperature
- Mounting Type Surface Mount
- Package / Case SC-74A, SOT-753
- Supplier Device Package SOT-23-5
- Base Part Number MIC5317
- detail Linear Voltage Regulator IC 1 Output 150mA SOT-23-5
