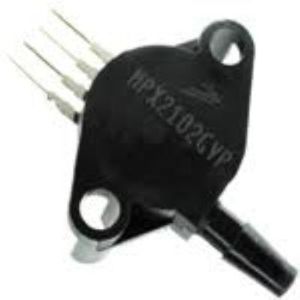

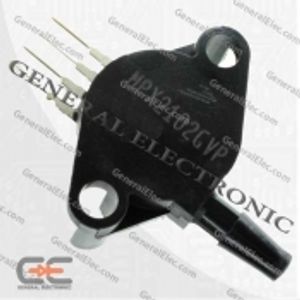

MPX2102GVP
در 4 فروشگاه
| Manufacturer | NXP USA Inc. |
| Package | 4-SIP Module |
| Datasheet | MPX2102, MPXV2102G Series |
| Description | Pressure Sensor 14.5PSI (100kPa) Vented Gauge Male - 0.19" (4.93mm) Tube 0 mV ~ 40 mV (10V) 4-SIP Module |
تغییرات قیمت
مشخصات
- Manufacturer NXP USA Inc.
- Series MPX2102
- Part Status Obsolete
- Applications Board Mount
- Pressure Type Vented Gauge
- Operating Pressure 14.5PSI (100kPa)
- Output Type Wheatstone Bridge
- Output 0 mV ~ 40 mV (10V)
- Accuracy -0.6% ~ 0.4%
- Voltage - Supply 10V ~ 16V
- Port Size Male - 0.19" (4.93mm) Tube
- Port Style Barbed
- Features Temperature Compensated
- Termination Style PC Pin
- Maximum Pressure 58.02PSI (400kPa)
- Operating Temperature -40°C ~ 125°C
- Package / Case 4-SIP Module
- Supplier Device Package -
- Base Part Number MPX21
- detail Pressure Sensor 14.5PSI (100kPa) Vented Gauge Male - 0.19" (4.93mm) Tube 0 mV ~ 40 mV (10V) 4-SIP Module
