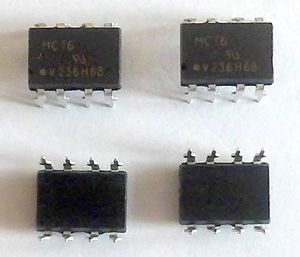

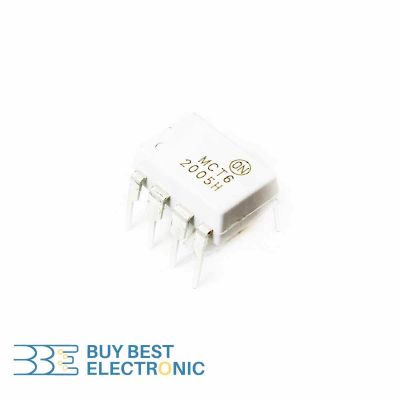

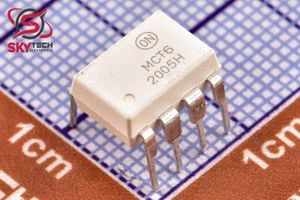

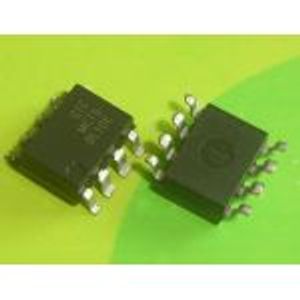

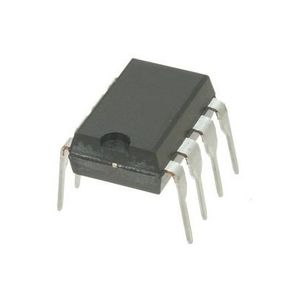

MCT6
در 8 فروشگاه
| Manufacturer | ON Semiconductor |
| Package | 8-DIP (0.300", 7.62mm) |
| Datasheet | MCT6, MCT61, MCT62 |
| Description | --- |
فروشگاه های اینترنتی
تغییرات قیمت
مشخصات
- Manufacturer ON Semiconductor
- Series -
- Packaging Tube
- Part Status Active
- Number of Channels 2
- Voltage - Isolation 5000Vrms
- Current Transfer Ratio (Min) 20% @ 10mA
- Current Transfer Ratio (Max) -
- Turn On / Turn Off Time (Typ) 2.4µs, 2.4µs
- Rise / Fall Time (Typ) -
- Input Type DC
- Output Type Transistor
- Voltage - Output (Max) 30V
- Current - Output / Channel 30mA
- Voltage - Forward (Vf) (Typ) 1.2V
- Current - DC Forward (If) (Max) 60mA
- Vce Saturation (Max) 400mV
- Operating Temperature -55°C ~ 100°C
- Mounting Type Through Hole
- Package / Case 8-DIP (0.300", 7.62mm)
- Supplier Device Package 8-DIP
- Base Part Number MCT6
