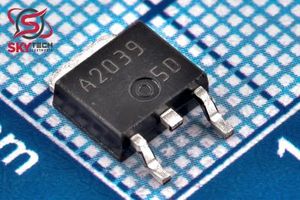

2SA2039-TL-E
در 3 فروشگاه
| Manufacturer | ON Semiconductor |
| Package | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Datasheet | 2SA2039/2SC5706 |
| Description | Bipolar (BJT) Transistor PNP 50V 5A 360MHz 800mW Surface Mount 2-TP-FA |
مقالات مرتبط در سیسوگ
مشخصات
- Manufacturer ON Semiconductor
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- Transistor Type PNP
- Current - Collector (Ic) (Max) 5A
- Voltage - Collector Emitter Breakdown (Max) 50V
- Vce Saturation (Max) @ Ib, Ic 430mV @ 100mA, 2A
- Current - Collector Cutoff (Max) 1µA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce 200 @ 500mA, 2V
- Power - Max 800mW
- Frequency - Transition 360MHz
- Operating Temperature 150°C (TJ)
- Mounting Type Surface Mount
- Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package 2-TP-FA
- Base Part Number 2SA2039
- detail Bipolar (BJT) Transistor PNP 50V 5A 360MHz 800mW Surface Mount 2-TP-FA
