FDA28N50F

FDA28N50F

FDA28N50F

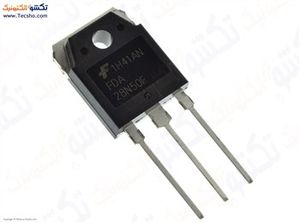

N-Channel 500V 28A (Tc) 310W (Tc) Through Hole TO-3PN

در 1 فروشگاه

تغییرات قیمت
مشخصات
  • ON SemiconductorManufacturer
  • UniFET™Series
  • TubePackaging
  • ActivePart Status
  • N-ChannelFET Type
  • MOSFET (Metal Oxide)Technology
  • 500VDrain to Source Voltage (Vdss)
  • 28A (Tc)Current - Continuous Drain (Id) @ 25°C
  • 10VDrive Voltage (Max Rds On, Min Rds On)
  • 175mOhm @ 14A, 10VRds On (Max) @ Id, Vgs
  • 5V @ 250µAVgs(th) (Max) @ Id
  • 105nC @ 10VGate Charge (Qg) (Max) @ Vgs
  • ±30VVgs (Max)
  • 5387pF @ 25VInput Capacitance (Ciss) (Max) @ Vds
  • -FET Feature
  • 310W (Tc)Power Dissipation (Max)
  • -55°C ~ 150°C (TJ)Operating Temperature
  • Through HoleMounting Type
  • TO-3PNSupplier Device Package
  • TO-3P-3, SC-65-3Package / Case
  • FDA28Base Part Number
