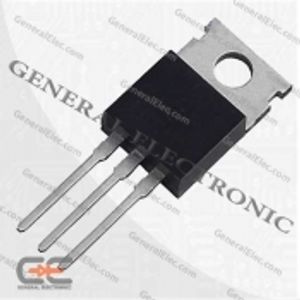

IXTP140P05T

IXTP140P05T

IXTP140P05T

در 2 فروشگاه

مشخصات فنی:
ManufacturerIXYS
PackageTO-220-3
Datasheet IXT(A,H,P)140P05T
Description ---
تغییرات قیمت
مشخصات
  • Manufacturer IXYS
  • Series TrenchP™
  • Packaging Tube
  • Part Status Active
  • FET Type P-Channel
  • Technology MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss) 50V
  • Current - Continuous Drain (Id) @ 25°C 140A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On) 10V
  • Rds On (Max) @ Id, Vgs 9mOhm @ 70A, 10V
  • Vgs(th) (Max) @ Id 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs 200nC @ 10V
  • Vgs (Max) ±15V
  • Input Capacitance (Ciss) (Max) @ Vds 13500pF @ 25V
  • FET Feature -
  • Power Dissipation (Max) 298W (Tc)
  • Operating Temperature -55°C ~ 150°C (TJ)
  • Mounting Type Through Hole
  • Supplier Device Package TO-220AB
  • Package / Case TO-220-3
