TS5A23159DGSR

TS5A23159DGSR

TS5A23159DGSR

در 3 فروشگاه

مشخصات فنی:
ManufacturerTexas Instruments

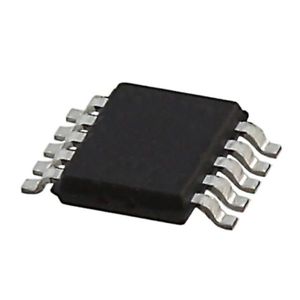

Package10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Datasheet TS5A23159
Description 2 Circuit IC Switch 2:1 900mOhm 10-VSSOP
تغییرات قیمت
مشخصات
  • Channel Capacitance (CS(off), CD(off)) 18pF
  • Channel-to-Channel Matching (ΔRon) 50mOhm
  • Operating Temperature -40°C ~ 85°C (TA)
  • Packaging Cut Tape (CT)
  • Multiplexer/Demultiplexer Circuit 2:1
  • -3db Bandwidth 100MHz
  • Manufacturer Texas Instruments
  • Charge Injection -7pC
  • Current - Leakage (IS(off)) (Max) 20nA
  • On-State Resistance (Max) 900mOhm
  • Switch Circuit SPDT
  • Package / Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
  • Voltage - Supply, Single (V+) 1.65V ~ 5.5V
  • Switch Time (Ton, Toff) (Max) 13ns, 8ns
  • Supplier Device Package 10-VSSOP
  • Mounting Type Surface Mount
  • Base Part Number TS5A231
  • Voltage - Supply, Dual (V±) -
  • Number of Circuits 2
  • Crosstalk -64dB @ 1MHz
  • Part Status Active
  • Series -
  • detail 2 Circuit IC Switch 2:1 900mOhm 10-VSSOP
