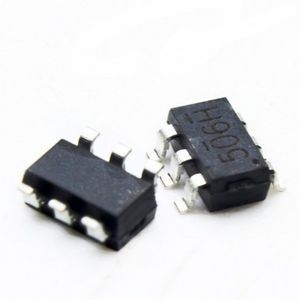

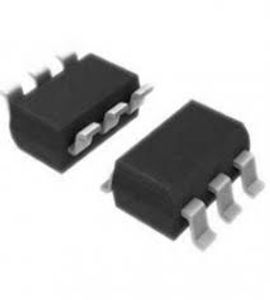

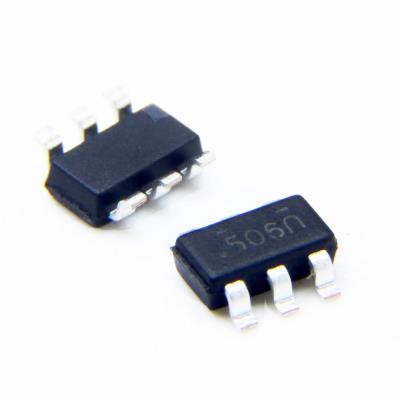

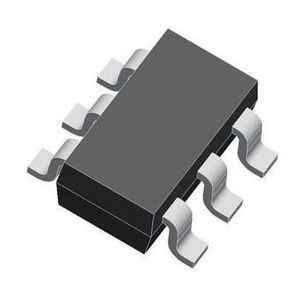

FDC6506P

FDC6506P

FDC6506P

Mosfet Array 2 P-Channel (Dual) 30V 1.8A 700mW Surface Mount SuperSOT™-6

در 2 فروشگاه

تغییرات قیمت
مشخصات
  • ON SemiconductorManufacturer
  • PowerTrench®Series
  • Cut Tape (CT)Packaging
  • ActivePart Status
  • 2 P-Channel (Dual)FET Type
  • Logic Level GateFET Feature
  • 30VDrain to Source Voltage (Vdss)
  • 1.8ACurrent - Continuous Drain (Id) @ 25°C
  • 170mOhm @ 1.8A, 10VRds On (Max) @ Id, Vgs
  • 3V @ 250µAVgs(th) (Max) @ Id
  • 3.5nC @ 10VGate Charge (Qg) (Max) @ Vgs
  • 190pF @ 15VInput Capacitance (Ciss) (Max) @ Vds
  • 700mWPower - Max
  • -55°C ~ 150°C (TJ)Operating Temperature
  • Surface MountMounting Type
  • SOT-23-6 Thin, TSOT-23-6Package / Case
  • SuperSOT™-6Supplier Device Package
  • FDC6506Base Part Number
