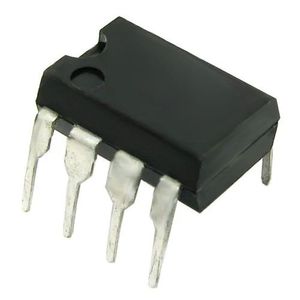

UC3842AN
在 6 商店
75,000 IRT
| Manufacturer | Texas Instruments |
| Package | 8-DIP (0.300", 7.62mm) |
| Datasheet | UC2842A(43A), UC3842A(43A) |
| Description | Boost, Flyback Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 8-PDIP |
价格变化
规格
- RoHS true
- Category Power Supply Chip/AC-DC Controllers & Regulators
- Topology Boost;Step-down;Flyback;Forward
- Datasheet Texas Instruments UC3842AN
- Duty Cycle 96%
- Supply Voltage 10V~30V
- Switching Frequency 500kHz
- Operating Temperature 0°C~+70°C@(Ta)
- Package DIP-8
- Manufacturer Texas Instruments
- Series -
- Packaging Tube
- Part Status Obsolete
- Output Type Transistor Driver
- Function Step-Up, Step-Up/Step-Down
- Output Configuration Positive
- Number of Outputs 1
- Output Phases 1
- Voltage - Supply (Vcc/Vdd) 10V ~ 30V
- Frequency - Switching Up to 500kHz
- Duty Cycle (Max) 96%
- Synchronous Rectifier No
- Clock Sync No
- Serial Interfaces -
- Control Features Frequency Control
- Mounting Type Through Hole
- Package / Case 8-DIP (0.300", 7.62mm)
- Supplier Device Package 8-PDIP
- Base Part Number UC384
- detail Boost, Flyback Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 8-PDIP
