Logic Guide دیتاشیت

Logic Guide

مشخصات دیتاشیت

نام دیتاشیت Logic Guide
حجم فایل 4999.474 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

دانلود دیتاشیت Logic Guide

دانلود دیتاشیت

سایر مستندات

SN74LVC1G08-EP 17 pages

SN74LVC1G08MDBVREP 17 pages

مشخصات فنی

  • RoHS: true
  • Series: 74LVC
  • Category: Logic ICs/Gates

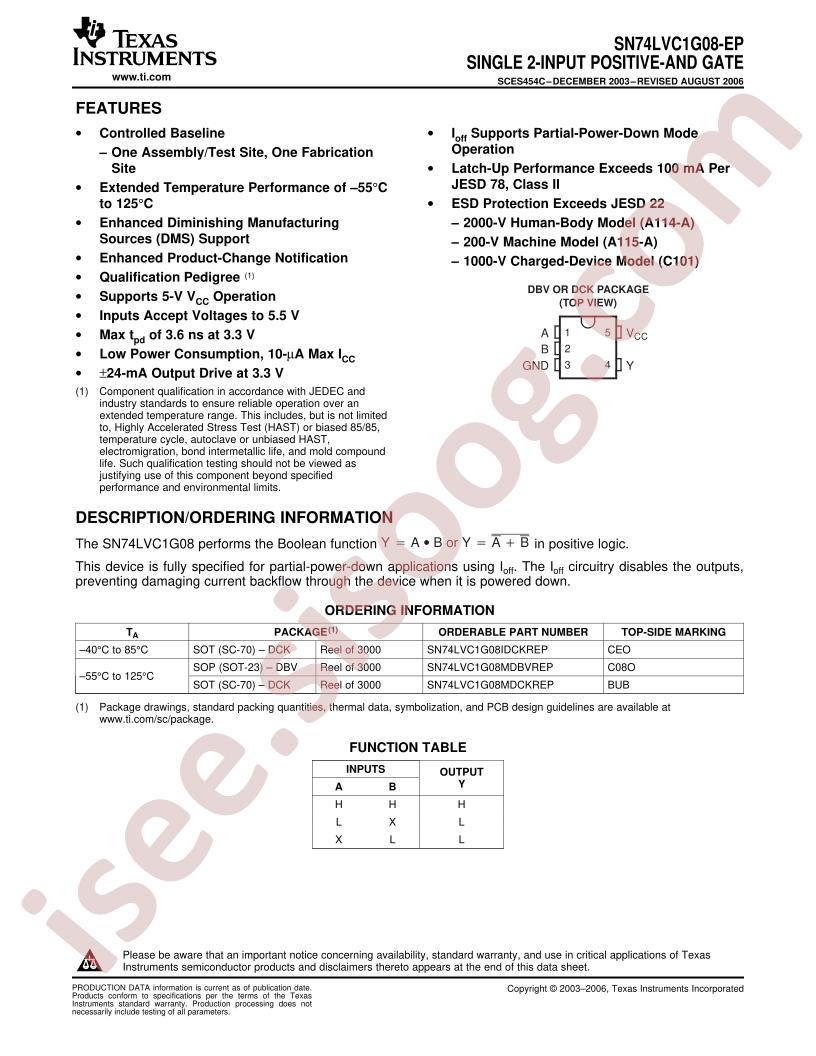

  • Datasheet: Texas Instruments SN74LVC1G08MDCKREP
  • Sink Current: 32mA
  • Source Current: 32mA
  • Supply Voltage: 1.65V~5.5V
  • Logic Gate Type: And
  • Number of Channels: 1
  • Operating Temperature: -55°C~+125°C
  • Propagation Delay Time: 5ns@5V,50pF
  • Quiescent Current (Max): 10uA
  • Package: SC-70-5
  • Manufacturer: Texas Instruments
  • Supplier Device Package: SC-70-5
  • Number of Circuits: 1
  • Mounting Type: Surface Mount
  • Number of Inputs: 2
  • Logic Level - High: -
  • Features: -
  • Current - Quiescent (Max): 10µA
  • Current - Output High, Low: 32mA, 32mA
  • Packaging: Cut Tape (CT)
  • Logic Level - Low: -
  • Voltage - Supply: 1.65V ~ 5.5V
  • Base Part Number: SN74LVC1G
  • Package / Case: 5-TSSOP, SC-70-5, SOT-353
  • Logic Type: AND Gate
  • Max Propagation Delay @ V, Max CL: 5ns @ 5V, 50pF
  • Part Status: Active
  • detail: AND Gate IC 1 Channel SC-70-5
