دیتاشیت CD4520BPWR
مشخصات دیتاشیت
| نام دیتاشیت | CD4520BPWR |
|---|---|
| حجم فایل | 115.318 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 23 |
CD4520BPWR |
دانلود دیتاشیت |
|---|
سایر مستندات
Logic Guide 20 pages
Signal Switch Data Book 1267 pages
Digital Logic Data Book 794 pages
CD4518B,4520B 19 pages
مشخصات فنی
- RoHS: true
- Category: Logic ICs/Counters / Dividers
- Datasheet: Texas Instruments CD4520BPWR
- Direction: 向上计数器
- Count Rate: 8MHz
- Logic Type: Binary Counter
- Reset Style: Asynchronous
- Timing mode: Synchronous
- Trigger Type: Positive Edge;Negative Edge
- Supply Voltage: 3V~18V
- Number of Elements: 2
- Operating Temperature: -55°C~+125°C
- Number of Bits per Element: 4

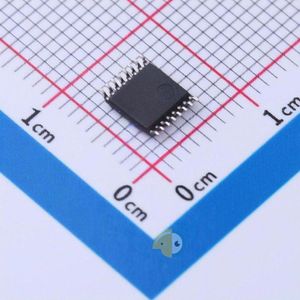

- Package: TSSOP-16
- Manufacturer: Texas Instruments
- Timing: Synchronous
- Reset: Asynchronous
- Voltage - Supply: 3V ~ 18V
- Part Status: Active
- Mounting Type: Surface Mount
- Packaging: Cut Tape (CT)
- Package / Case: 16-TSSOP (0.173", 4.40mm Width)
- Series: 4000B
- Supplier Device Package: 16-TSSOP
- Base Part Number: CD4520
- detail: Counter IC Binary Counter 2 Element 4 Bit Positive, Negative 16-TSSOP
