دیتاشیت SN74LVC32ADBR

SN54LVC32A, SN74LVC32A

مشخصات دیتاشیت

نام دیتاشیت SN54LVC32A, SN74LVC32A
حجم فایل 1454.861 کیلوبایت
نوع فایل pdf
تعداد صفحات 32

دانلود دیتاشیت SN54LVC32A, SN74LVC32A

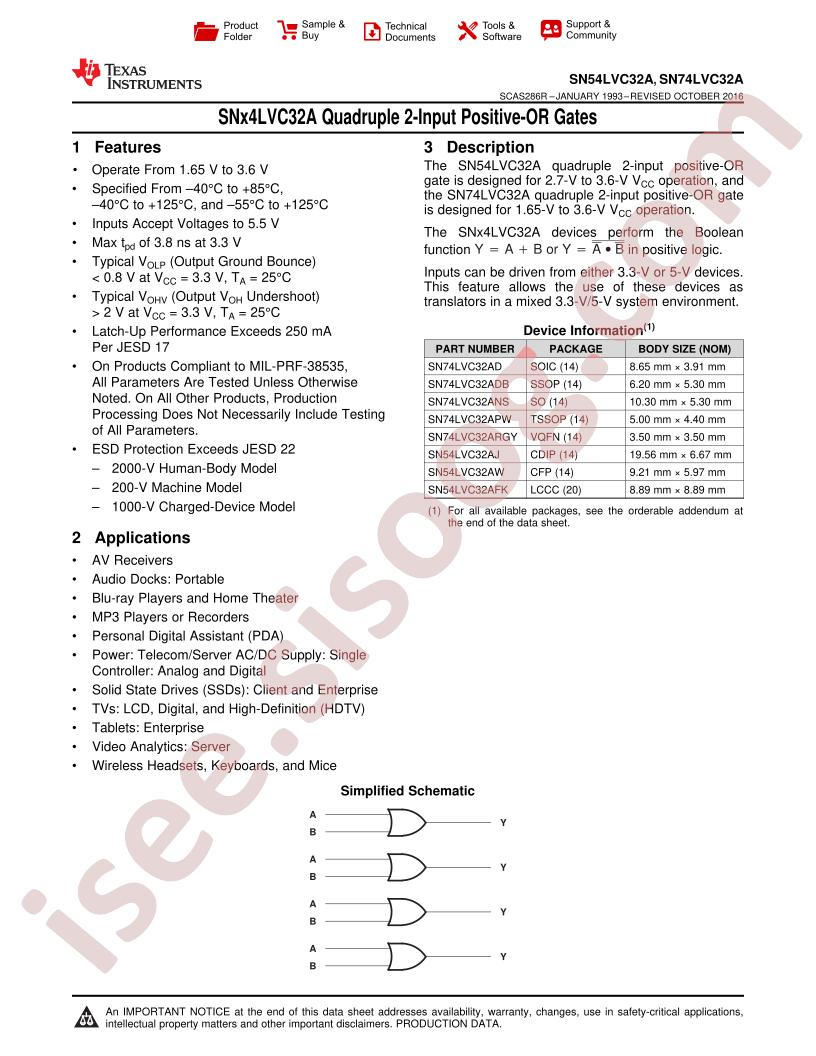

SN54LVC32A, SN74LVC32A Datasheet

مشخصات

  • RoHS: true
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN74LVC32ADBR
  • Package: SSOP-14
  • Manufacturer: Texas Instruments
  • Mounting Type: Surface Mount
  • Logic Level - Low: 0.7V ~ 0.8V
  • Current - Quiescent (Max): 1µA
  • Voltage - Supply: 1.65V ~ 3.6V
  • Series: 74LVC
  • Number of Circuits: 4
  • Operating Temperature: -40°C ~ 125°C
  • Packaging: Cut Tape (CT)
  • Package / Case: 14-SSOP (0.209", 5.30mm Width)
  • Logic Level - High: 1.7V ~ 2V
  • Part Status: Active
  • Current - Output High, Low: 24mA, 24mA
  • Features: -
  • Base Part Number: SN74LVC32
  • Supplier Device Package: 14-SSOP
  • Number of Inputs: 2
  • Logic Type: OR Gate
  • Max Propagation Delay @ V, Max CL: 3.6ns @ 3.3V, 50pF
  • detail: OR Gate IC 4 Channel 14-SSOP
