Logic Guide دیتاشیت

Logic Guide

مشخصات دیتاشیت

نام دیتاشیت Logic Guide
حجم فایل 4999.474 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

دانلود دیتاشیت Logic Guide

دانلود دیتاشیت

سایر مستندات

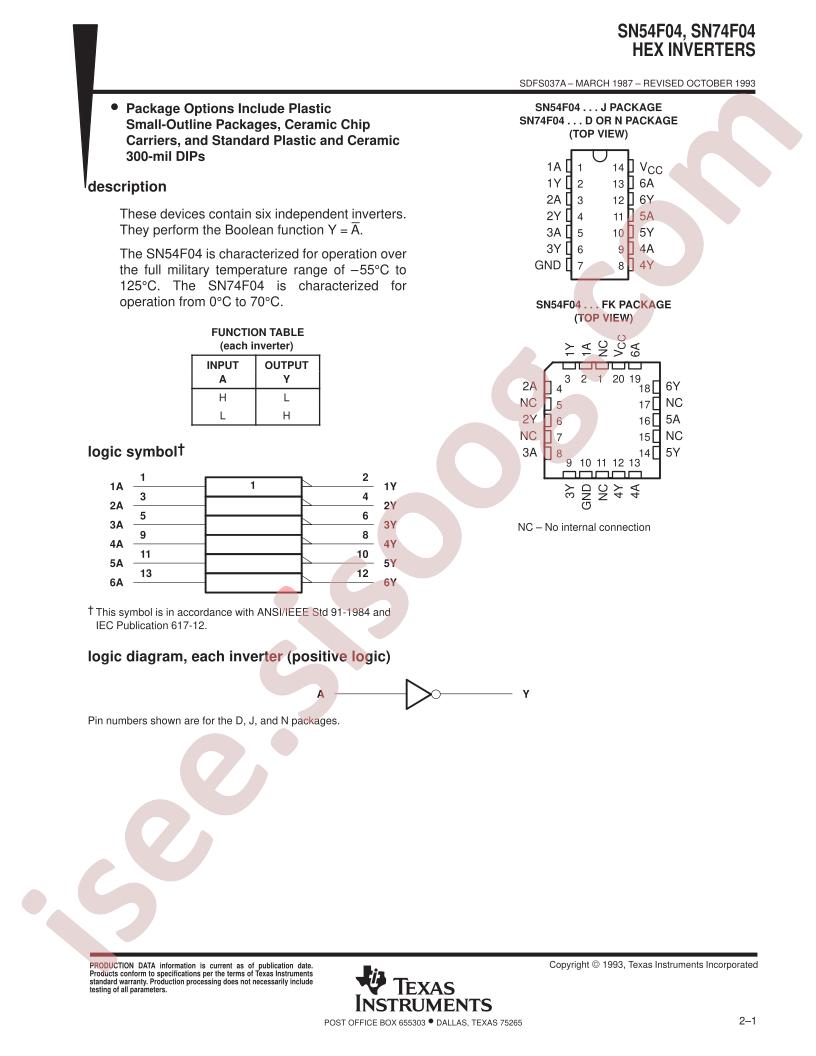

SN54F04, SN74F04 18 pages

SN74F04DR 16 pages

مشخصات فنی

  • RoHS: true
  • Series: 74F
  • Category: Logic ICs/Inverters
  • Datasheet: Texas Instruments SN74F04NSR
  • Input Type: -
  • Sink Current: 20mA
  • Source Current: 1mA
  • Number of channels: 6
  • Supply Current (Max): 4.3mA
  • Low level range (VIL): 0.8V
  • Max Propagation Delay: 5ns@5V,50pF
  • High level range (VIH): 2V
  • Supply Voltage(Single): 4.5V~5.5V
  • Package: SOIC-14-208mil
  • Manufacturer: Texas Instruments
  • Current - Quiescent (Max): 4.3mA
  • Package / Case: 14-SOIC (0.209", 5.30mm Width)
  • Logic Level - High: 2V
  • Number of Circuits: 6
  • Number of Inputs: 6
  • Features: -
  • Current - Output High, Low: 1mA, 20mA
  • Mounting Type: Surface Mount
  • Supplier Device Package: 14-SOP
  • Logic Type: Inverter
  • Operating Temperature: 0°C ~ 70°C
  • Max Propagation Delay @ V, Max CL: 5ns @ 5V, 50pF
  • Voltage - Supply: 4.5V ~ 5.5V
  • Packaging: Cut Tape (CT)
  • Base Part Number: SN74F04
  • Part Status: Active
  • Logic Level - Low: 0.8V
  • detail: Inverter IC 6 Channel 14-SOP
