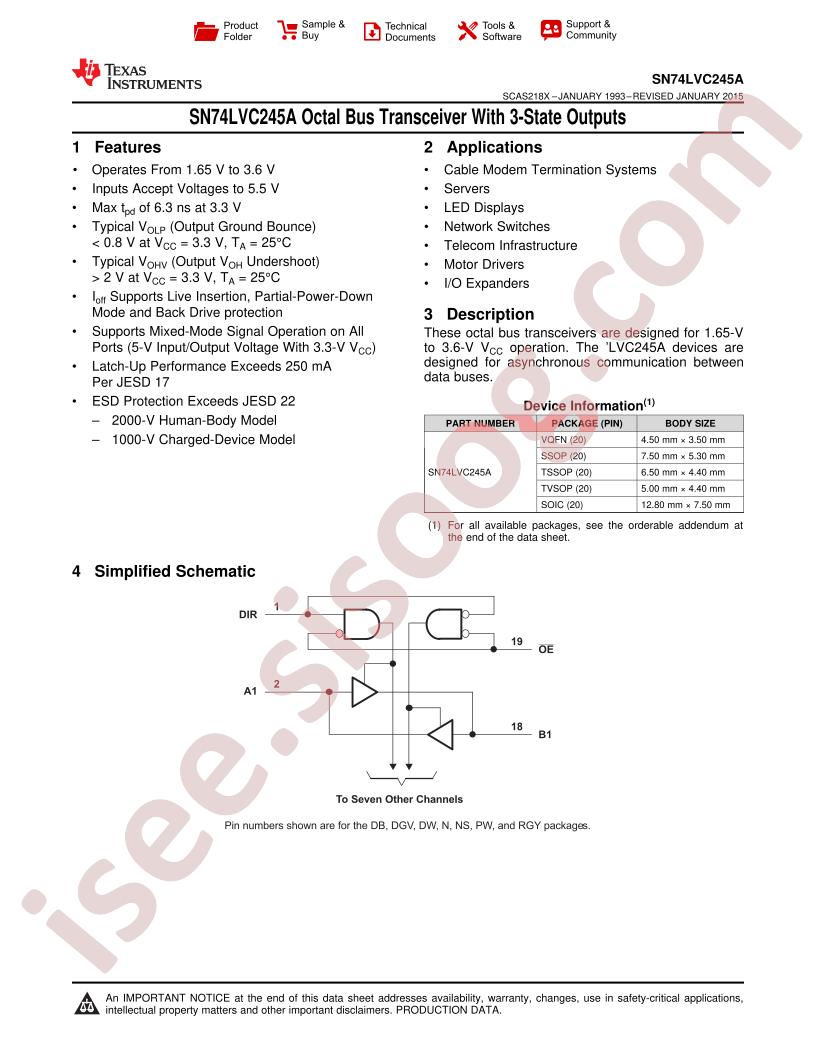

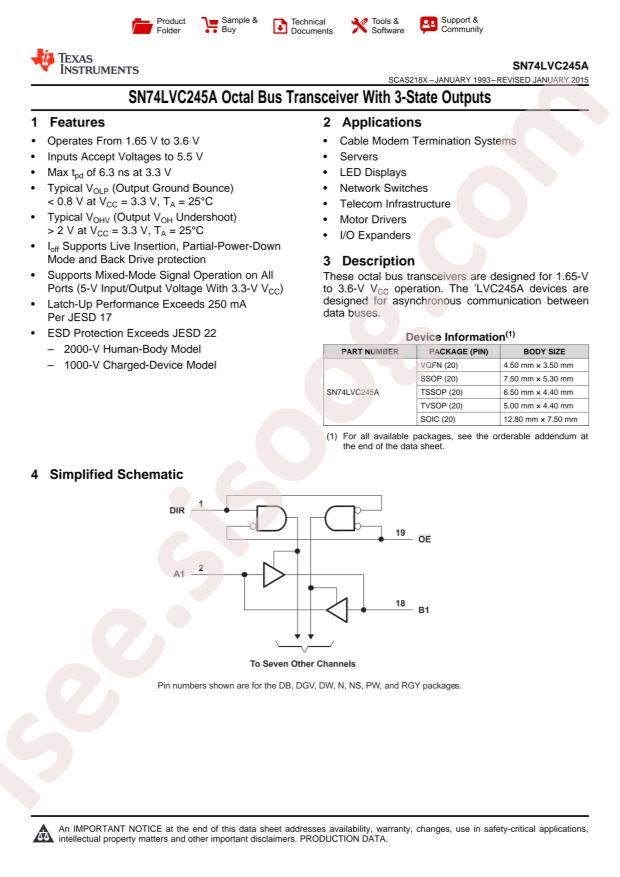

دیتاشیت SN74LVC245APWR

SN74LVC245APWR

مشخصات دیتاشیت

نام دیتاشیت SN74LVC245APWR
حجم فایل 73.231 کیلوبایت
نوع فایل pdf
تعداد صفحات 35

SN74LVC245APWR

دانلود دیتاشیت

سایر مستندات

Logic Guide 20 pages

SN74LVC245A 34 pages

مشخصات فنی

  • RoHS: true
  • Category: Logic ICs/Buffer/Driver/Transceiver
  • Datasheet: Texas Instruments SN74LVC245APWR
  • output type: Tri-State
  • Logic Family: 74LVC
  • Sink Current: 24mA
  • Source Current: 24mA
  • Supply Voltage: 1.65V~3.6V
  • Number of Elements: 1
  • Operating Temperature: -40°C~+125°C
  • Number of Bits per Element: 8
  • Package: TSSOP-20
  • Manufacturer: Texas Instruments
  • Packaging: Cut Tape (CT)
  • Base Part Number: SN74LVC24
  • Package / Case: 20-TSSOP (0.173", 4.40mm Width)
  • Voltage - Supply: 1.65V ~ 3.6V
  • Mounting Type: Surface Mount
  • Series: 74LVC
  • Supplier Device Package: 20-TSSOP
  • Logic Type: Transceiver, Non-Inverting
  • Input Type: -
  • Current - Output High, Low: 24mA, 24mA
  • Part Status: Active
