Logic Guide 数据手册
其他文档

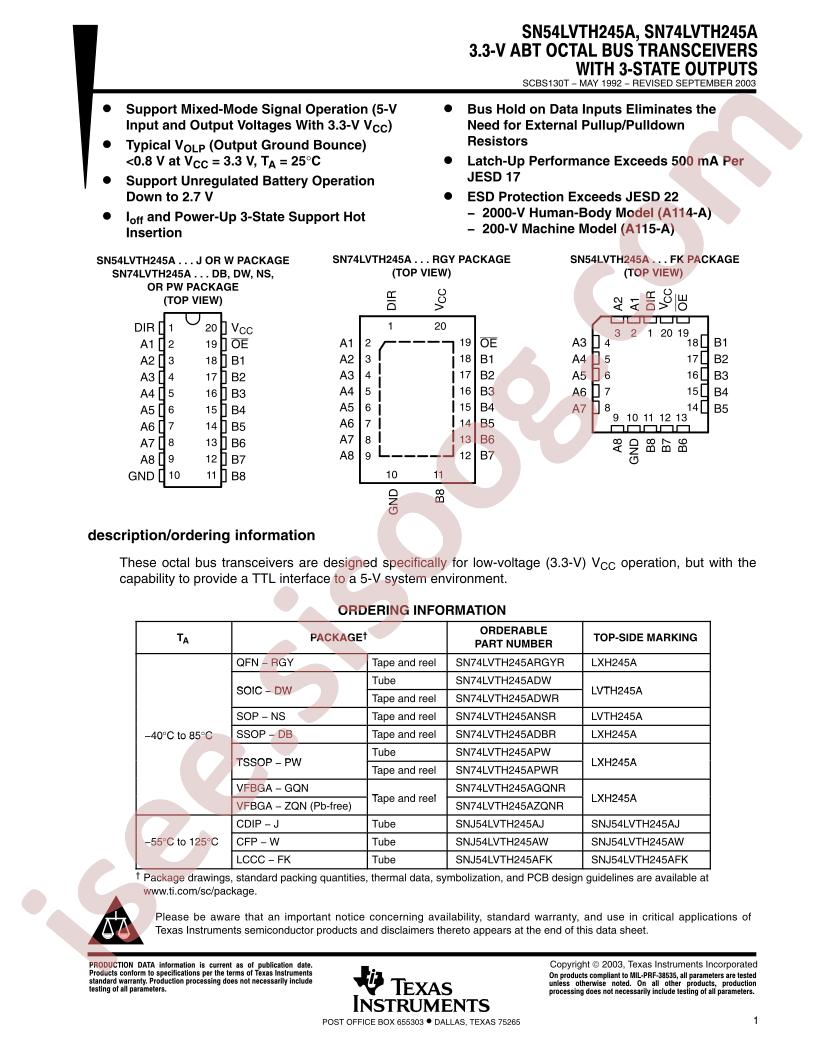

SN(54,74)LVTH245A Datasheet 28 pages
SN74LVTH245APWR 30 pages
技术规格
- RoHS: true
- Category: Logic ICs/Buffer/Driver/Transceiver
- Datasheet: Texas Instruments SN74LVTH245ADBR
- Input type: -
- output type: Tri-State
- Sink Current: 64mA
- Source Current: 32mA
- Supply Voltage: 2.7V~3.6V
- Operating Temperature: -40°C~+85°C
- Package: SSOP-20
- Manufacturer: Texas Instruments
- Number of Elements: 1
- Supplier Device Package: 20-SSOP
- Series: 74LVTH
- Mounting Type: Surface Mount
- Base Part Number: SN74LVT
- Packaging: Cut Tape (CT)
- Number of Bits per Element: 8
- Current - Output High, Low: 32mA, 64mA
- Package / Case: 20-SSOP (0.209", 5.30mm Width)
- Part Status: Active
- Logic Type: Transceiver, Non-Inverting
- Voltage - Supply: 2.7V ~ 3.6V
- detail: Transceiver, Non-Inverting 1 Element 8 Bit per Element 3-State Output 20-SSOP
