- STP10NK80ZFP

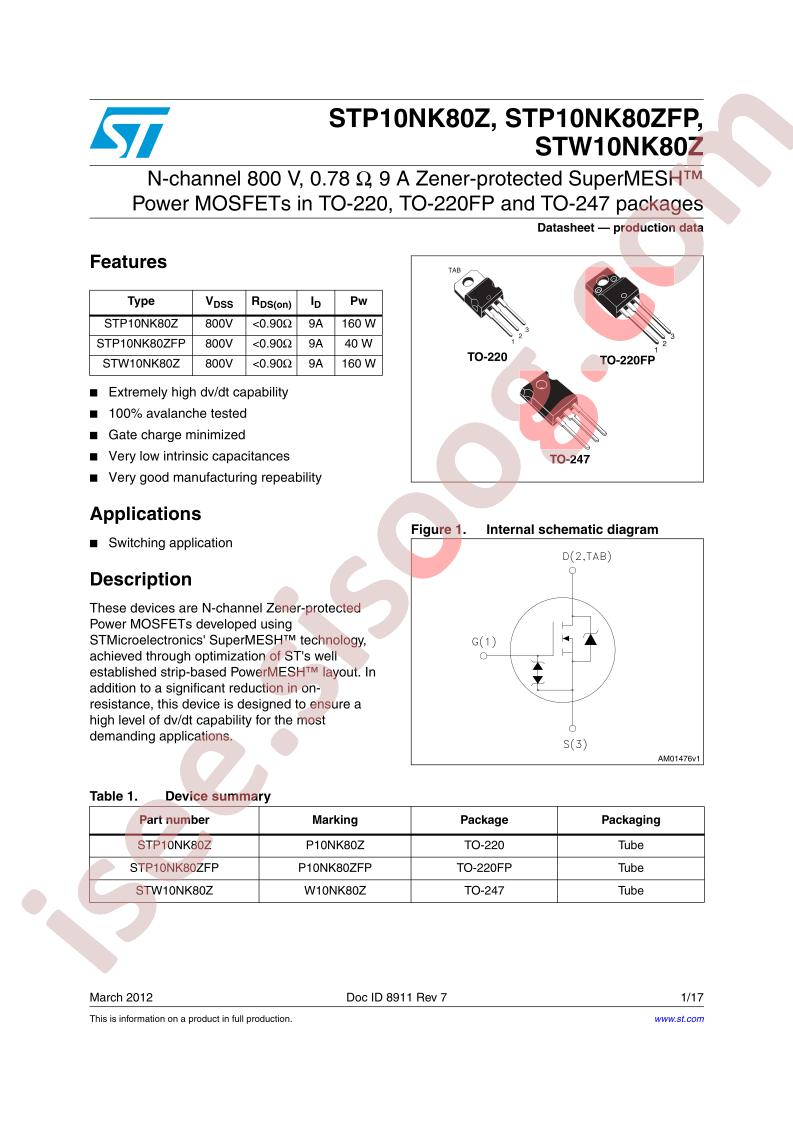

STP10NK80ZFP Datasheet
Datasheet specifications
| Datasheet's name | STP10NK80ZFP |
|---|---|
| File size | 69.587 KB |
| File type | |
| Number of pages | 17 |
Download Datasheet STP10NK80ZFP |
Download Datasheet |
|---|
Other documentations
ST(P,W)10NK80Z(FP) 17 pages
Technical specifications
- RoHS: true
- Type: N Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: STMicroelectronics STP10NK80ZFP
- Power Dissipation (Pd): 40W
- Drain Source Voltage (Vdss): 800V
- Continuous Drain Current (Id): 9A
- Gate Threshold Voltage (Vgs(th)@Id): 4.5V@100uA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 900mΩ@10V,4.5A
- Package: TO-220AB-3
- Manufacturer: STMicroelectronics
- Series: SuperMESH™
- Packaging: Tube
- Part Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 800V
- Current - Continuous Drain (Id) @ 25°C: 9A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 900mOhm @ 4.5A, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs: 72nC @ 10V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 2180pF @ 25V
- FET Feature: -
- Power Dissipation (Max): 40W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220FP
- Package / Case: TO-220-3 Full Pack
- Base Part Number: STP10
- detail: N-Channel 800V 9A (Tc) 40W (Tc) Through Hole TO-220FP
