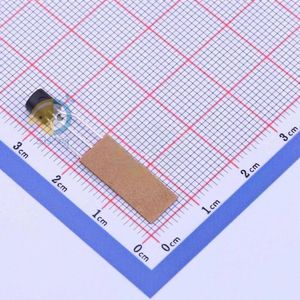

2N6520TA
در 0 فروشگاه قیمت هنوز مشخص نشده است
این محصول در حال حاضر فروشنده ای ندارد!
| Manufacturer | onsemi |
| Package | TO-226-3, TO-92-3 (TO-226AA) (Formed Leads) |
| Datasheet | 2N6515,17,20 |
| Description | Bipolar (BJT) Transistor PNP 350V 500mA 200MHz 625mW Through Hole TO-92-3 |
فروشنده های 2N6520TA
فروشگاهی یافت نشد
تغییرات قیمت
مشخصات 2N6520TA
- RoHS true
- Category Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
- Datasheet onsemi 2N6520TA
- Transistor Type PNP
- Operating Temperature +150°C@(Tj)
- Collector Current (Ic) 500mA
- Power Dissipation (Pd) 625mW
- Transition Frequency (fT) 40MHz
- DC Current Gain (hFE@Ic,Vce) 20@50mA,10V
- Collector Cut-Off Current (Icbo) 50nA
- Collector-Emitter Breakdown Voltage (Vceo) 350V
- Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib) 1V@50mA,5mA
- Package TO-92-3
- Manufacturer onsemi
- Series -
- Packaging Cut Tape (CT)
- Part Status Active
- Current - Collector (Ic) (Max) 500mA
- Voltage - Collector Emitter Breakdown (Max) 350V
- Vce Saturation (Max) @ Ib, Ic 1V @ 5mA, 50mA
- Current - Collector Cutoff (Max) 50nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce 20 @ 50mA, 10V
- Power - Max 625mW
- Frequency - Transition 200MHz
- Mounting Type Through Hole
- Package / Case TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
- Supplier Device Package TO-92-3
- Base Part Number 2N6520
- detail Bipolar (BJT) Transistor PNP 350V 500mA 200MHz 625mW Through Hole TO-92-3
